CL63.XXFGDHKMXX VEGACAL 63 Capacitive rod probe for continuous level measurement
CL63.XXFGDHKMXX VEGACAL 63 Capacitive rod probe for continuous level measurement
CL63.XXFGDHKMXX VEGACAL 63 Capacitive rod probe for continuous level measurement
CL63.XXFGDHKMXX VEGACAL 63 Capacitive rod probe for continuous level measurement
Specifications
Brand Name :
VEGA
Model Number :
CL63.XXFGDHKMXX
Certification :
rohs
Place of Origin :
GERMANY
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500+pcs+on stock
Delivery Time :
Negotiable
Packaging Details :
CARTON
Measuring range - Pressure :
-10 .. 1000bar
Origin :
Germany
lead time :
6-8week
Warranty :
1year
goods :
Brand new and original
color :
yellow
name :
PS62
successor :
VEGABAR 62
Description

CL63.XXFGDHKMXX VEGACAL 63 Capacitive rod probe for continuous level measurement

CL63.XXFGDHKMXX VEGACAL 63 Capacitive rod probe for continuous level measurementCL63.XXFGDHKMXX VEGACAL 63 Capacitive rod probe for continuous level measurement

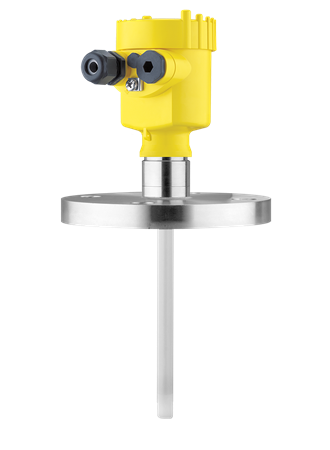

VEGACAL 63

Capacitive rod probe for continuous level measurement

Rod probe, fully PE or PTFE insulated

Application area

For measurement in conductive and non-conductive liquids. A full/empty adjustment is necessary for setup.
The VEGACAL 63 level sensor can be used universally for the measurement of conductive and non-conductive liquids. The rod electrode is fully insulated and the proven mechanical construction offers high functional safety.

Your benefit

  • Savings through simple mounting and setup
  • Long lifetime and low maintenance requirement through robust mechanical construction
  • Maximum utilization of the vessel because measurement over the complete probe length

  • VEGACAL 63

    Approval directive / Scope
    None / World-wide
    Approval
    XXwithout
    Version / Process temperature
    FRod (ø12mm) 316L with PTFE insulation / -50...+150°C
    Process fitting / Material
    GDThread G1½ PN64, DIN3852-A / 316L
    Electronics
    HTwo-wire 4 ... 20 mA/HART
    Address setting
    • No
    Linearization
    No
    Housing / Protection
    KPlastic single chamber / IP66/IP67
    Cable entry / Cable gland / Plug connection
    MM20x1.5 / with / without
    Display/adjustment module PLICSCOM
    Xwithout
    Length (from seal surface)
    100 ... 6000 mm
    Additional equipment
    X Without
    Menu language
    EN - English
    Operating instructions
    DE - German
    Number of operating instructions
    0 ... 1000
    Measurement loop designation label
    • without
    Additional cleaning procedure
    • without
    Certificate / Standard
    Without
    Dye penetration test
    • without
    Pressure test
    without
    PMI test
    • without
    High voltage test
    • without
    Low temperature test at -60 °C
    • without
    Durability test more than 360 h
    • without
    Suitable for tropical regions
    • without
    SIL qualification
    • without
    Foodstuff/Pharmaceutical certificate
    without
    Process pressure max. in bar
    64
    Process pressure min. in bar
    -1
    Customs tariff number (HS code)
    90261029
