No Degradation Cellular Glass Board Insulation , Foam Glass Thermal Insulation
No Degradation Cellular Glass Board Insulation , Foam Glass Thermal Insulation
Specifications
Name :
Cellular Glass Board Insulation
Feature :
Environmental protection
Dimensional stability :
≤0.3
Tensile strength vertical to the plane :
≥0.15
Combustibility :
A1
Application :
Petroleum industry
Place of Origin :
Changzhou, Jiangsu,China
Brand Name :
Kaff Rees
MOQ :
20 Cubic Meters
Price :
Negotiable
Packaging Details :
Carton packaging/Wooden case packaging/according to the requirements
Payment Terms :
EXW/FOB/CIF
Certification :
SGS
Delivery Time :
Negotiable
Supply Ability :
According to products
Description



Cellular glass is praised as "permanent thermal insulating material with no need of renewal", because it is not only safe but also durable in rigor conditions of low and cryogenic temperature, underground, open air, flammability, moisture sensitivity and even chemical erosion.

Features

1. Low density, low thermal conductivity and high compressive strength;
2. No water absorption, moisture permeability and leakage;
3. Small thermal expansion coefficient, good dimensional stability, no deformation and no cracking;
4. Fire protection, non combustion and corrosion resistance;
5. No mildew, no mouse sniffing, pest control and microorganism;
6. It is suitable for all kinds of harsh environments such as high temperature, deep cold, constant temperature and humidity.
7. Easy to cut, process and construct;
8. Inorganic products, no aging, no degradation of performance, service life synchronous with buildings;
9. Recycling, innocuity, safety and environmental protection.

Performance Index

ItemPerformance IndexTest Mode
IIIIIIIV
Volume density Kg/m3≤120≤140≤160≤180JC/T 647
Density range＞100 ≤120＞120 ≤140＞140 ≤160＞160 ≤180
Conductivity W/(m*k)≤0.042≤0.045≤0.058≤0.062GB/T 10294
Compressive strength (MPa)≥0.5≥0.6≥0.6≥0.7GB/T 5486
Flexural strength (MPa)≥0.3≥0.5≥0.5≥0.6
Tensile strength vertical to the plane(MPa)≥0.15JG149
Water Absorption by Vol. (v/v),%≤0.5JC/T 647
Dimensional stability %≤0.3GB/T 8811
CombustibilityA1GB 8624
Radionuclide limitinternal exposure index(Ira)≤1.0GB 6566
external exposure index(Ir)≤1.0

PropertyUnitGrade 800Grade 1000Grade 1200Grade 1600
Ave. Densitykg/m3120±8130±8140±8160±10
Thermal ConductivityAve. ValueW/(m·K)0.0430.0440.0460.048
Highest Single Value(10℃)0.0450.0460.0480.05
Compressive StrengthAve. ValueMPa0.811.21.6
Lowest Single Value0.550.690.831.1
Water Absorption by Vol.%≤0.5
Thermal Expansion Coefficient1/℃9×10-6
Service Temp.℃-196～+450
PropertyUnitGrade 500Grade 700Grade 1400Grade 2400
Ave. Densitykg/m3110±8115±8150±10220±20
Thermal ConductivityAve. ValueW/(m·K)0.0380.040.0470.056
Highest Single Value(10℃)0.040.0420.0490.058
Compressive StrengthAve. ValueMPa0.50.71.42.4
Lowest Single Value0.350.480.971.66
Water Absorption by Vol.%≤0.5
Thermal Expansion Coefficient1/℃9×10-6
Service Temp.℃-196～+450


Application

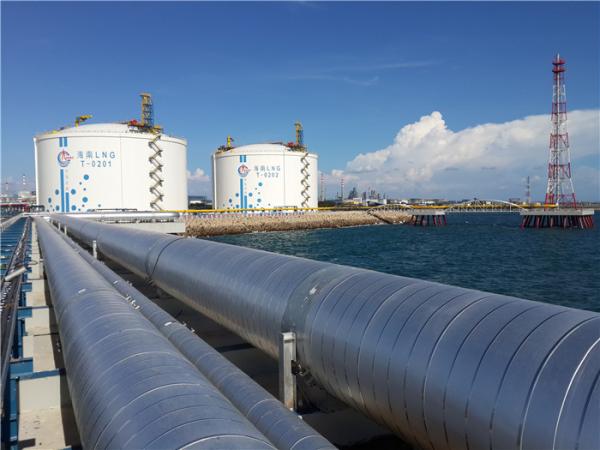

As an advanced thermal insulation material, cellular glass is widely used in petroleum industry, chemical industry, underground engineering, shipbuilding and defense works. It can be used in the cryogenic insulation system in pharmacy, the cryogenic system in hydrocarbon processing, the low temperature piping, equipment and storage tank, the cold storage and cold storage building, the steel liquid oxygen, liquid nitrogen storage tank and pipeline, and rxterior wall insulation, exterior insulation, roofing, basement.

Flow of Production

No Degradation Cellular Glass Board Insulation , Foam Glass Thermal Insulation
