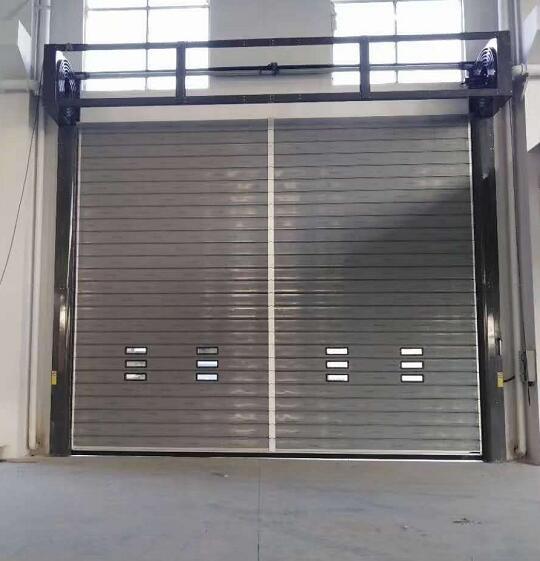

Resist Wind 70mm High Speed Spiral Door For Outdoor Passage
Resist Wind 70mm High Speed Spiral Door For Outdoor Passage
Resist Wind 70mm High Speed Spiral Door For Outdoor Passage
Resist Wind 70mm High Speed Spiral Door For Outdoor Passage
Resist Wind 70mm High Speed Spiral Door For Outdoor Passage
Resist Wind 70mm High Speed Spiral Door For Outdoor Passage
Specifications
Brand Name :
DESEO
Model Number :
HFD5000
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
USD 3000/UNIT
Payment Terms :
T/T
Supply Ability :
200 unit per month
Delivery Time :
7-20 days
Packaging Details :
plywood package
Name :
High Speed Spiral Door
Features :
High Speed,Automatic,security,heat preservation
Thickness of Panel :
40mm ~ 70mm
Wind Resistance :
Beaufort scale 12 (35m/s)
Description

Applications

Speed and security with the option of vision are major benefits of Helix.

Operation

Operation is by the German manufactured Gfa motor with frequency controller.

The directly driven torsion tube and guidance system ensures that the door movement is controlled to the maximum extent at all times.



Technical Data:

Item Description
Mateiral Aluminum Alloy Profile(PU Sandwich optional) & Transparent PVC Section
Thickness of Material Double-layer Aluminum profile 0.8mm ~ 2.5mm
Thickness of Panel 40mm ~ 70mm
Foam Density ≥ 50kg / m3
Speed Open / Close to max : 2.5 / 0.7 m/s
Wind Resistance Beaufort scale 12 (35 m / s)
Color: White / Grey / Sliver / Blue / Red / Customer-tailor
Noise Level: < 60dB
Lifting way 90°Vertical Lift / Turbo Type / Ellipse Type
Max Dimension 5000*7500 MM
Heat preservation K ≤ 1.5W/(m2•K)
Drive System Brake Motor or Servo Motor
SEW / ABB Brake Motor, 220V 50HZ / 380V 50HZ, 0.75Kw, 1.1Kw,1.5Kw,2.2Kw
Control System Inverter Type or Servo Type
Service Life > 10 Years
Safety 1) Photocell Sensor
2) Airbag Installed at Door Edge Bottom (BUTTERFLY Pressure Wave Sensor)

Construction

Double-walled 220mm aluminum slats

Integral weatherseal between the aluminum slats

Heavy-duty hinge system for door panel assembly

Durable powder coated steel side columns and head console (excludes US/R models)

Extension springs in side column

Options

Insulated slats

Vision slats

Ventilated slats

Hood and motor covers

Classic RAL and custom color match powder coated finish

Resist Wind 70mm High Speed Spiral Door For Outdoor PassageResist Wind 70mm High Speed Spiral Door For Outdoor Passage

Resist Wind 70mm High Speed Spiral Door For Outdoor Passage

Resist Wind 70mm High Speed Spiral Door For Outdoor Passage
