Specifications
Brand Name :
DESEO
Model Number :
SD4600
Certification :
CE/ISO9001:2008
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
USD 800/UNIT
Payment Terms :
T/T
Supply Ability :
200 unit per month
Delivery Time :
7-20 days
Packaging Details :
plywood package
Type :
Garage Doors,industrial door
Feature :
fire prevention
Position :
Industrial,Garage,Exterior,Commercial
Opening Method :
Foldable
Material :
Aluminun Alloy,Galvanzied Steel,Stainless Steel/Aluminum/Color plate
Logo :
Customized Logo
Description

Technical Data:

Item Description
Material SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate
Thickness of Panel Mateiral 0.326 / 0.45mm / 0.55mm / 0.6mm
Thickness of Guiding Rail Gualvanized Steel,thickness: 2mm

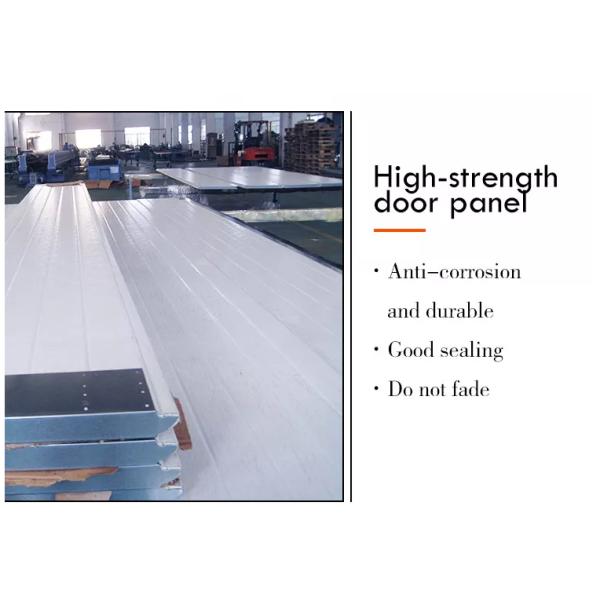

Thickness of Panel 40mm / 50mm
Width of Panel 430mm / 550mm
Density of Sandwiches 48kg/m3
Surface Treatment Power coating,thickness of coating:30um
Heat Preservation 4.5W/m.h
Wind Resistance Beaufort scale 11, 28m/s
Noise Level: ≤60db
Sound Insulation Level 24 Db
Fire Retardation: Class A
Speed 0.2-0.4m / s
Max Dimension 12m * 8m
Sealing Performance EPDM rubber all round sealing : two side, top, bottom,between door panels
Steel cord Flexible ,3.8mm
Power Supply 380V 50Hz / 220V 50Hz
Service Life 10 years
Emergency Operation Manual Hoist Chain to open the door in case of power off

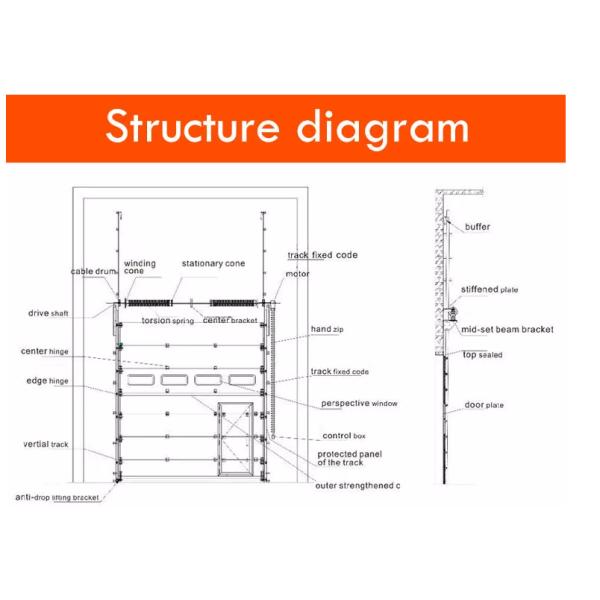

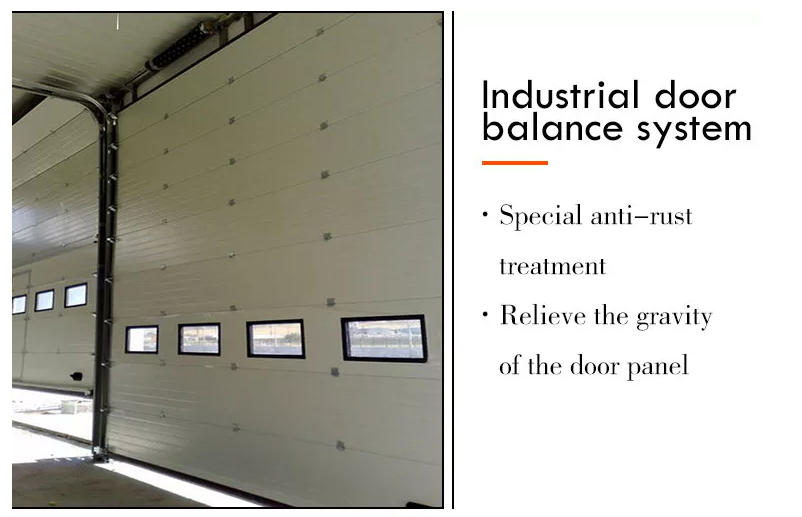

Balance System a. Balance the weight of door through the torsion spring
b. Easily manual operation: 140N to open
c. Spring brake device:Anti-broken device
d. Service Life:100 thousand open & close
e. Prolong the service life of the motor

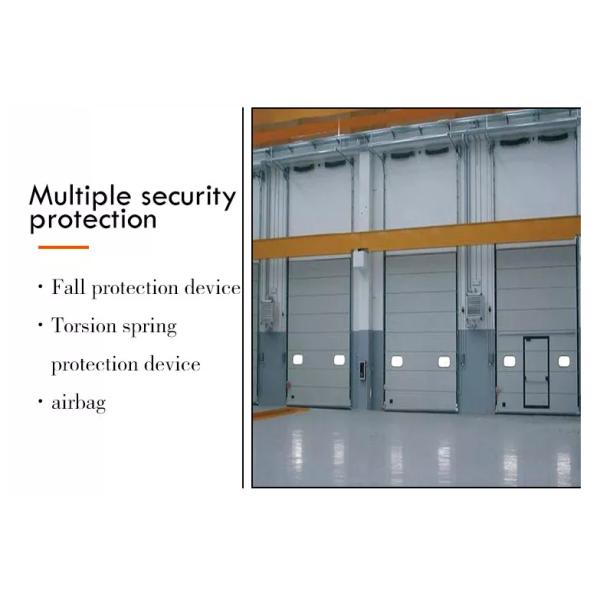

Safety Airbag protection, door anti-fall device, wire rope anti-break protection device.

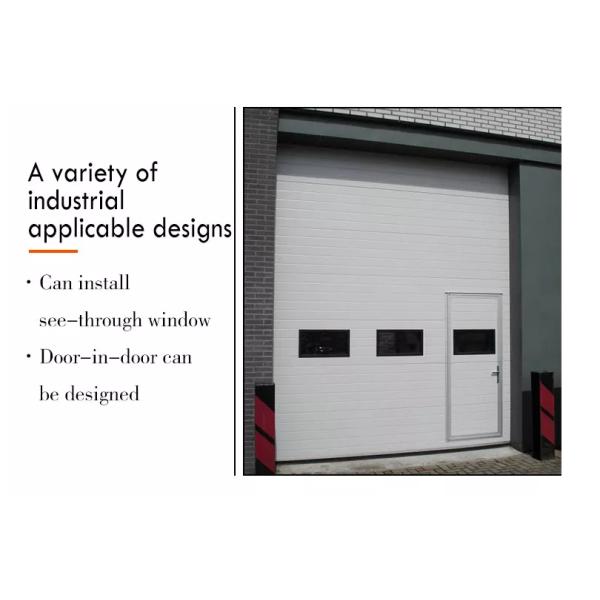

Optional Item Window,pedestrian door

Specifications

1. Our factory's Qualified automatic industrial door reach to official standard of European Union, Complete set of industrial door has tested, checked and certified by Italy Test institute which is designated and Authorized by European Union

2. Industrial door 's each section panel joint is adopt "Finger-protection"(Pinch-resistant) safety Design in order to avoid any finger injury when door open and close.

3. Industrial door size and Color can be customized according to customer's requiremtns. Full range of Colors such as Green, Brown, Cream, Red, Grey, Blue, Black, Wood Golden Oak, Mahogany and Cherry colors, etc.

4. Double thickers layer of steel plate with Polyurethane Foam Inside --- Heat Insulation.

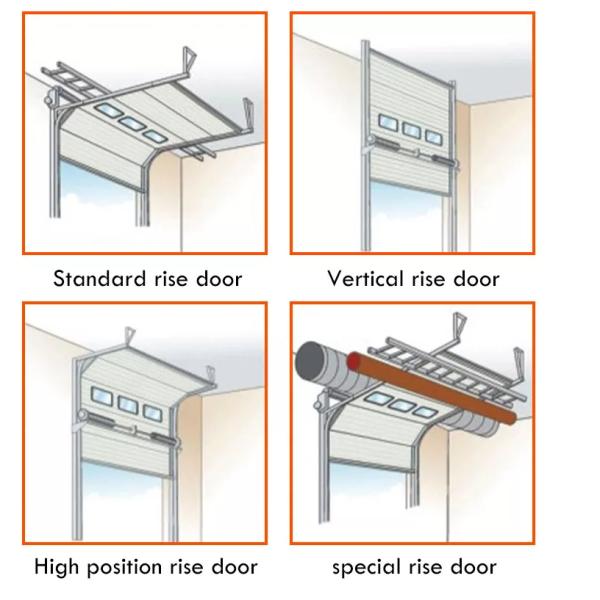

5. Industrial door with Double Track system in order to avoid any installation problem caused by lower headroom distance.
