0.5-0.7 MPa Pressure Insulating Glass Machine , Auto 6 Axis Robot Low Voltage
0.5-0.7 MPa Pressure Insulating Glass Machine , Auto 6 Axis Robot Low Voltage
Specifications
Brand Name :
LIJIANG GLASS
Model Number :
LJTJ2540
Certification :
CE
Place of Origin :
JINAN,CHINA
MOQ :
One set
Price :
Negotiable
Packaging Details :
Container
Name :
Insulating glass sealing robot
Max.glass size :
2500*4000mm
Min.glass size :
300*300mm
Glass thickness :
12-56mm
Working speed :
5-40m/min
Air pressure :
0.5-0.7MPa
Description

0.5-0.7 MPa Pressure Insulating Glass Machine , Auto 6 Axis Robot Low Voltage

LJTJ2540 automatic sealing robot is a new kind of automatic sealant spreading machine, it can seal double glazing glass, triple IG , stepped IG with four sides and 8 shaped IGUs.

Parameter :

Max.glass size 2500*4000mm
Min.glass size 300*300mm
Glass thickness 12-56mm
Working speed 5-40m/min
Air pressure 0.5-0.7MPa
Squeeze pressure 32MPa
Voltage power 380V 12kw
Overall dimension 8700*2000*3500mm

1.Gluing part adopts special relocation mechanism

ensure the gluing nozzle will touch IG unit closely, but will not break it. And it can adapt to a certain range of displacement error of IG unit.

2. Sealing width and depth is adjustable

Sealing width is adjustable by inputting parameter, convenient and accurate. Sealing depth can be detected automatically. Adding glue on the IG unit corner, ensures the sealing quality on the corner.

3. The sealing robot adopt imported famous brand products

All important electric elements, adopt imported famous brand products, such as Servo motor, controller, low-voltage apparatus, sensors, fiber optic photo switches and so on. Which will make sure the equipment runs well, reliable and long service life.

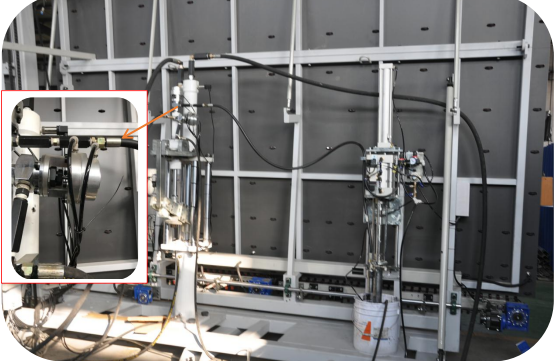

4. Servo motor glue system

The sealing robot uses 6 servo motors to control the whole machine.

5. Automatic digital control system

Control servo motor ensures the equipment precision and glue precision. The system also has a unilateral sealing, alarming, dangerous to be automatic determination and lock function.

6. Back Glue Device
When the pressure increasing, more Glue B will flow back automatically, saving materials.

6. 0.5-0.7 MPa Pressure Insulating Glass Machine , Auto 6 Axis Robot Low Voltage
