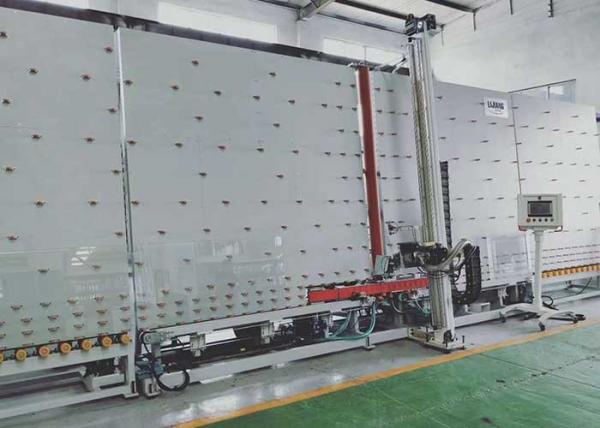

Energy Saving Touch Screen Edge Deletion Machine 3 To 19 Mm Glass Thickness
Energy Saving Touch Screen Edge Deletion Machine 3 To 19 Mm Glass Thickness
Specifications
Brand Name :
LIJIANG GLASS
Model Number :
LJCM2545
Certification :
CE
Place of Origin :
JINAN.CHINA
MOQ :
One set
Price :
Negotiable
Supply Ability :
100 sets per year
Delivery Time :
35 days
Packaging Details :
Container
Production name :
Low-e glass deletion machine
Max.glass processing size :
2500*4500mm
Min.glass processing size :
350*500mm
Glass thickness :
3-19mm
Edge deleting width :
10-50mm
Glass conveyor speed: :
30m/min
Abrasive wheel width :
10/12/15mm
Description

Energy Saving Touch Screen Edge Deletion Machine 3 To 19 Mm Glass Thickness

Parameter data :

Production name Smart glass edge deletion machine
Application Smart Low-e glass edge deletion machine
Max glass machine 2500*4500mm
Min.glass processing size 400*400mm
Glass thickness 3-15mm
Diameter of grinding wheel 200mm
Conveyor height 500mm
Edge deleting width 10-50mm
Transmission speed 2- 29m/min
Edge deleting speed 2-29m/min
Abrasive wheel width 10/12/15mm
Grinding wheel speed 0~3000r/min
Total air consumption 100L/ min
Air pressure ≥0.8MPa
Total power 3P 380V 50Hz 3.35KW
Dimension Dimensions :9700×2500×3400mm
Total weight 3680KG

Feature :

  • Automatic detection of glass thickness and Low-e coating surface.
  • Automatic adjustment of wheel abrasion caused by edge treatment.
  • Easy adjustment and control using the touch screen. (Process different Low-e Glass)
  • Minimized particles by using impinge.
  • Self diagnosis system provides a variety of operational data.
  • Can adjust various widths for the surface of edge treatment.
  • CE Certified
  • Control System

Energy Saving Touch Screen Edge Deletion Machine 3 To 19 Mm Glass Thickness
