Sealing Double Insulating Glass Machine High Pressure Protect Device 15 To 20 MPa
Sealing Double Insulating Glass Machine High Pressure Protect Device 15 To 20 MPa
Specifications
Brand Name :
LIJIANG GLASS
Model Number :
LJST03
Certification :
CE
Place of Origin :
JINAN,CHINA
MOQ :
One set
Price :
Negotiable
Supply Ability :
30 sets per week
Delivery Time :
10days
Packaging Details :
Wooden box
Name :
Two pump sealant sealing machine
Application :
Sealing double glass
Sealant spreading pressure :
15-20MPa
Sealant volume :
4L/min
Diameter of A/B sealant :
570mm/280mm
Mixed rate :
6:1-14:1
Description

Sealing Double Insulating Glass Machine High Pressure Protect Device 15 To 20 MPa

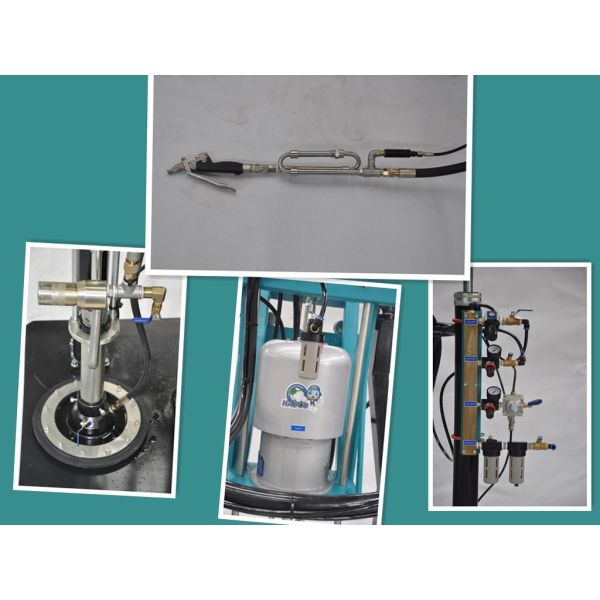

The manul two pump sealant spreading machine is used to spread silicone glue on double glazed glass machine with A pump and B pump.

Main feature

  • Use cylinder to provide power
  • China sealant gun,stainless steel mixer
  • High pressure protect device
  • Anti-back flow control structure
  • Mixed rate detector can control the rate of two kinds of glue

Technical data

Working air pressure 0.3-0.6MPa
Sealant spreading pressure 15-20MPa
Sealant volume 4L/min
Diameter of A/B sealant 570mm/280mm
Sealant spreading air pressure ratio 50:1
Mixed rate 6:1-14:1
Air supply Flow 0.8m3/min
Air pressure ≥0.8MPa
Overall dimension 1100*950*1630mm

Sealing Double Insulating Glass Machine High Pressure Protect Device 15 To 20 MPa
