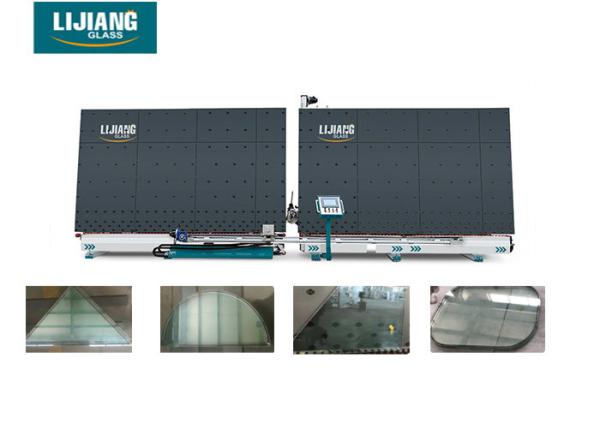

YASKAWA Servo System Sealant Extruder , Stable Insulating Glass Production Line
YASKAWA Servo System Sealant Extruder , Stable Insulating Glass Production Line
Specifications
Brand Name :
LIJIANG GLASS
Model Number :
LJTJ
Certification :
CE
Place of Origin :
JINAN, CHINA
MOQ :
1 set
Price :
Negotiable
Supply Ability :
50 sets per year
Delivery Time :
45 days
Packaging Details :
Container
Max.glass size :
2500*4000mm
Name :
Insulating glass sealing robot
Min.glass size :
300*300mm
Glass thickness :
12-56mm
Working speed :
5-40m/min
Air pressure :
0.5-0.7MPa
Description

YASKAWA Servo System Sealant Extruder With V-type Rubber Belt

Application:

Automatic sealant extruder is special designed for insulating glass production line, which work instead of hand sealant, greatly improve working efficiency and ensure quality of IG glass sheet.

Parameters:

Max.glass size 2500*4000mm
Min.glass size 300*300mm
Glass thickness 12-56mm
Working speed 5-40m/min
Air pressure 0.5-0.7MPa
Squeeze pressure 32MPa
Voltage power 380V 12kw
Overall dimension 8700*2000*3500mm

1, YASKAWA servo system and world famous brands of key components, ensure stable operation and long service life;

2, PLC controlling system, touching screen operation;

3, Workable for single and double insulation sealant(double layer and triple layer glass sheet);

4, Two sets of sealant glue supply systems and work independently; one key touching to switch between each other;

5, Timing automatic glue diecharging, avoid glue blocking;

6, V-type rubber belt for transportation, easily replaced once worn;

7, Programmable memory function, one key touching to different size of glass sheet processing;

8, Compact outlook design, saving working area;

YASKAWA Servo System Sealant Extruder , Stable Insulating Glass Production Line

YASKAWA Servo System Sealant Extruder , Stable Insulating Glass Production LineYASKAWA Servo System Sealant Extruder , Stable Insulating Glass Production Line

YASKAWA Servo System Sealant Extruder , Stable Insulating Glass Production LineYASKAWA Servo System Sealant Extruder , Stable Insulating Glass Production Line
