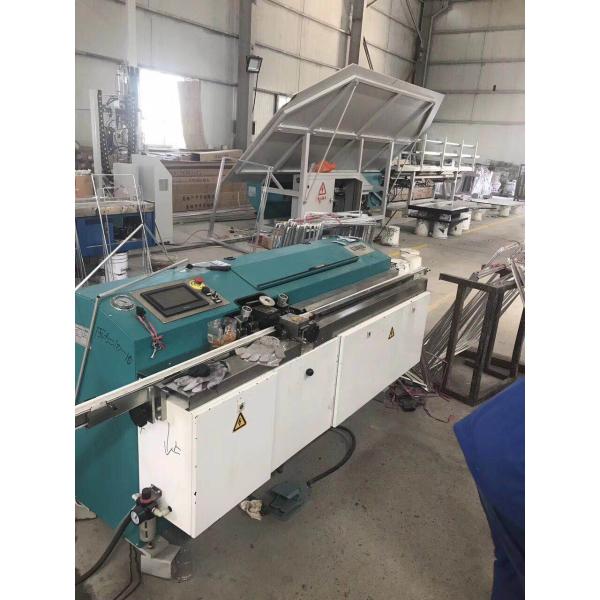

Double Glass Extrusion Coating Machine Pressure Resistance With Pneumatic Component
Double Glass Extrusion Coating Machine Pressure Resistance With Pneumatic Component
Specifications
Brand Name :
JINAN LIJIANG
Model Number :
LJTB01
Certification :
CE certificate
Place of Origin :
Jinan， China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 sets per Month
Delivery Time :
10 days
Packaging Details :
Wooden package
Name :
Automatic butyl extruder machine
Aluminum spacer width :
4-27mm
Speed :
0-47m/min
Temperature :
110℃ - 140℃
Type :
IG machine
Rectangle frame :
available
Roud frame :
available
Arc frame :
available
Warm spacer :
available
Alupro spacer :
available
Description

Insulating glass butyl coating extruder machine with fast coating speed with non-stick coating for shuttered window

Features:

The main parts we adopt the famous brand from home and abroad

Hydralic and pneumatic supercharging pump ,German maximator brand

Hydralic component from German HAWE brand with high pressure resistance, stable performance

Pneumatic component from Taiwan Airtac

Relay, japan OMROM

The special part made the both sides of nozzle open and close at the same time

PLC use the Kinco from China

Technical Data

Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 4-30mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW, 50HZ
Dimension 2600×680×1100mm(L×W×H)
Weight 650kg

Machine details

Double Glass Extrusion Coating Machine Pressure Resistance With Pneumatic Component

Double Glass Extrusion Coating Machine Pressure Resistance With Pneumatic Component

Q&A

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
