420 Kg Desiccant Filling Machine 0.65 MPa With Easy Butyl Changing Device
420 Kg Desiccant Filling Machine 0.65 MPa With Easy Butyl Changing Device
Specifications
Brand Name :
Lijiang
Model Number :
LJGZ2020A
Certification :
CE
Place of Origin :
Jinan China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 sets/month
Delivery Time :
30 days
Packaging Details :
Seaworthy plastic or plywood available
Color :
Customer's request
Filling aluminum frame's maximum size :
2000mm*2000mm
Filling aluminum frame's minimal size :
300mm*250mm
Article aluminum specifications :
5.5-24mm
Air source :
≥0.65MPa
Weight :
420kg
Meas :
1600*1300*3600mm
Power :
1.8kw
Function :
filling desiccant to aluminium spacer
Voltage :
AC220V 50Hz
Shaped frame :
available
Description

Desiccant Automatic Filling Machine For Arc Angle Frame With Easy Butyl Changing Device For Double Glass Making.

The diameter of one desiccant is 0.5-0.9mm

Allowed large desiccant package,saving the time of filling desiccant,increasing efficiency

Auto desiccant loading and adding function

Allowed recycling desiccant

Filling for bending frame and connected frame

Filling time can be adjust

Design the protect device,safe operation

Drilling the hole in the both sides of the frame, then filling the desiccant

Large frame is allowed

Germany Siemens PLC control system

Adopt vacuum pump loading device

The drilling hole can be sealed by butyl automatically

Can filling circular arc frame (optional)

Main technical parameter

Filling aluminum frame’s maximum size 2000mm*2000mm
Filling aluminum frame’s minimal size 300mm*250mm
Article aluminum specifications 5.5-24mm
Air source ≥0.65MPa
Power supply and power consumption AC220V 50Hz 1.8KW
Molecular sieve diameter needed 0.5-0.9mm
Dimension 1300mm*1100mm*3650mm

Main components

Name Brand Name Brand
PLC German SIEMENS Triplet TAIWAN AIRTAC
Low voltage electrical apparatus German SIEMENS Solenoid valve TAIWAN AIRTAC
Sensor Korea AUTONICS Gas driller Taiwan BOA
Guide Taiwan TBI Switch power Taiwan TEND

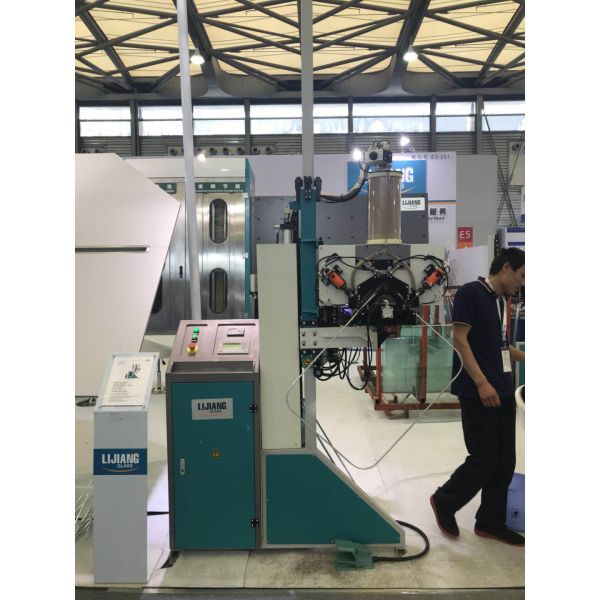

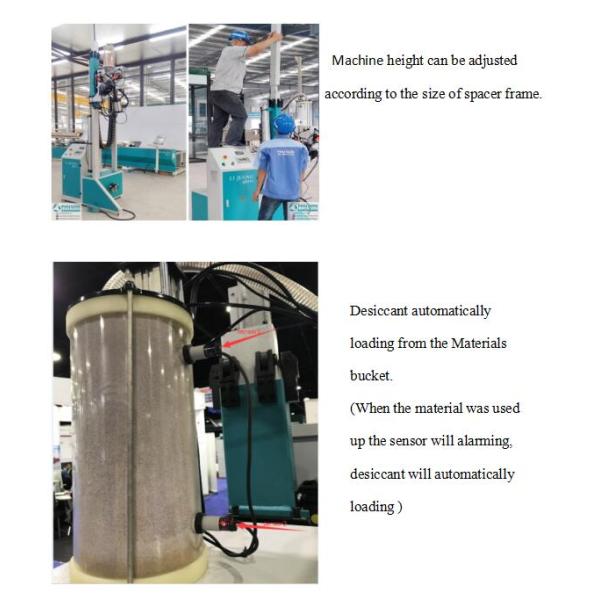

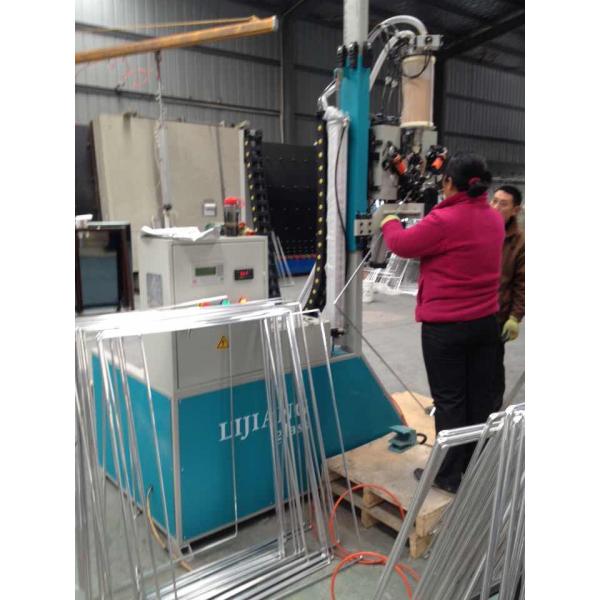

Machine details

420 Kg Desiccant Filling Machine 0.65 MPa With Easy Butyl Changing Device

420 Kg Desiccant Filling Machine 0.65 MPa With Easy Butyl Changing Device

420 Kg Desiccant Filling Machine 0.65 MPa With Easy Butyl Changing Device
