Industrial Spacer Bending Machine Four Storages , Glass Drilling Machine 1250 Kg
Industrial Spacer Bending Machine Four Storages , Glass Drilling Machine 1250 Kg
Specifications
Brand Name :
Lijiang
Model Number :
LJZW2020
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
30 sets/month
Delivery Time :
30 days
Packaging Details :
Seaworthy plastic or plywood available
Color :
Customer's request
Max.bending size :
2000mm*2000mm
Min.bending size :
250mm*200mm
Aluminum spacer width :
5.5-24mm
Dimensional error :
≤±0.5mm
Angle error :
≤±1°
Processing speed :
≤26s
Air supply :
≥0.65MPa
Function :
Spacer bending
Weight :
1250kg
Description

Automatic Hollow Glass Spacer Bending Machine With Drilling Gas Filling Hole And Four Spacer Storages

APPLICATION

The Automatic Hollow Glass Spacer Bending Machine With Drilling Gas Filling Hole And Four Spacer Storages is used to apply Siemens control system and touch screen operation to achieve automatically bend aluminum and warm edge spacers of insulating glass evenly, and the machine has functions of size optimization calculation, evading connected pieces and connecting automatically. The machine can process angle size well and control the anger size in 0.015mm. It also can bend special-shaped frame and it improves practicability of machines by humanization designed. So the machine can greatly increase bending efficiency, it only spends 26s to bend a 1m*1m frame. So it is necessary equipment in hollow glass productions.

Power supply 200V 50Hz
Total power 2.5KW
Air pressure ≥0.65Mpa
Min spacer frame size 250*380mm
Max spacer frame size 2500*3000mm
Spacer width range 5.5mm~24mm
Overall dimension 10500*2200*2600mm
Production tolerances ± 0.05mm
Weight 1800kg

Main Features


Spacer auto connecting and cutting
Machine auto stop when no spacer supplied

Four different spacer size storage units
Can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (option)
Support continuous bending , auto avoid spacer connection while bending and cutting
.Auto-connector
Remote control function
USB input function ,it can read the excel data directly
Japan servo motor system to feed and bend the aluminum bar.
The whole machine is controlled by Siemens PLC. The whole machine features easy and quick operation.
Taiwan Airtac pneumatic components.

Machine hand help to bend the bigger spacer
Pause and reset device,convenient for machine malfunction maintained

Spare parts of all machine have code ,convenient for after-saleHeavy duty connectors ,convenience and safety for installation and debugging

Power consumption 2.5KW
Air source 0.65Mpa
Power supply 380V 50HZ
Min.processing size 250*250mm
Max.processing size 2000*2000mm
Specification 10500*2200*2600mm
Aluminum spacer bar 5.5~24mm

Machine Deatails

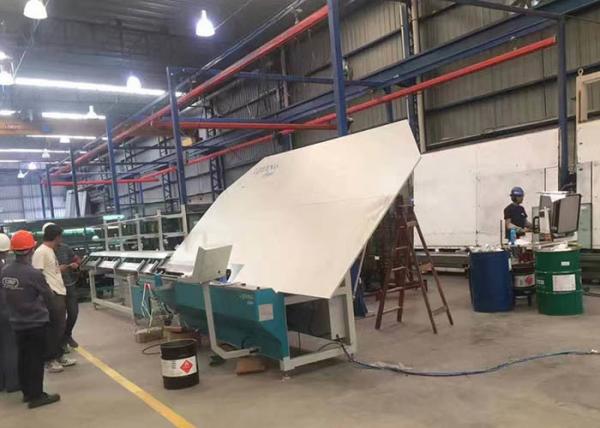

Industrial Spacer Bending Machine Four Storages , Glass Drilling Machine 1250 Kg

Industrial Spacer Bending Machine Four Storages , Glass Drilling Machine 1250 Kg

Industrial Spacer Bending Machine Four Storages , Glass Drilling Machine 1250 Kg
