500 Kg Vacuum Hoist Lifting Systems , 2.5 KW Glass Vacuum Lifting Equipment
500 Kg Vacuum Hoist Lifting Systems , 2.5 KW Glass Vacuum Lifting Equipment
Specifications
Brand Name :
Lijiang
Model Number :
LJXJ500
Certification :
CF
Place of Origin :
Jinan China
MOQ :
1
Price :
Negotiable
Supply Ability :
30 sets/month
Delivery Time :
30 days
Packaging Details :
Seaworthy plastic or plywood available
Color :
Customers' Request
Usage :
Double Glass Processing
Function :
Glass lifting
Type :
Semi automatic
Power :
2.5KW
Number of suckers :
4
Weight :
500kg
Dimension :
L1120xW660XH620mm
Description

500 Kg Vacuum Hoist Lifting Systems , 2.5 KW Glass Vacuum Lifting Equipment

Application

Intruduction

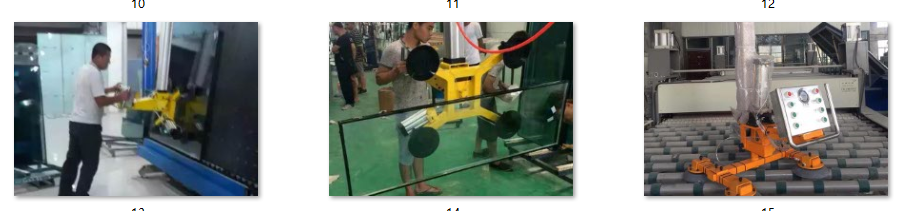

This vacuum glass lifter is for handling insulating glass sheet.
- This glass lifter is able to lift the glass sheet with 500kg
- It is equip with 4 suckers. But the sucker can be add according to need of the client.
- The equipment is Stable, Easy to use and safe.
- The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
Used For
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.

Main technical parameters

Max load
500KG
Around rotary scope
90°
Column height
3400mm or 3900mm
Track length
4m
Lifting height
1.4m
Number of sucker
4
Moving mode
Manual
Operation mode
Manual switch valve
Air pressure
0.5mpa-0.8mpa

500 Kg Vacuum Hoist Lifting Systems , 2.5 KW Glass Vacuum Lifting Equipment
