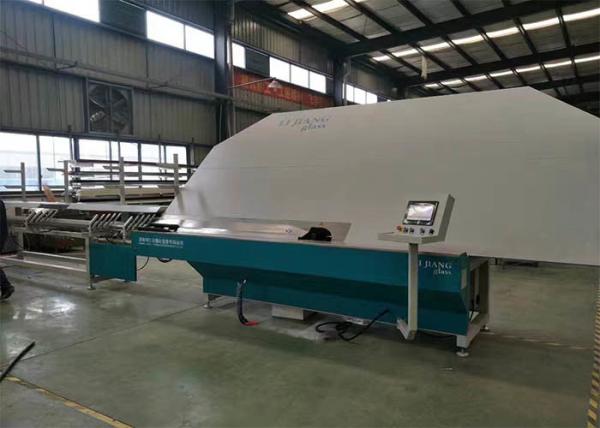

High Efficiency Spacer Bending Machine Multi Screen Technical Within 26 S
High Efficiency Spacer Bending Machine Multi Screen Technical Within 26 S
Specifications
Brand Name :
LIJIANG GLASS
Model Number :
LJZW2020
Certification :
CE
Place of Origin :
JINAN, CHINA
MOQ :
1set
Price :
Negotiable
Supply Ability :
20 sets per month
Packaging Details :
seaworthy
Max spacer size :
2000*2000mm
Min spacer size :
250mm*200mm
Aluminum spacer width :
5.5-24mm
Dimensional error :
within 0.5mm
Angle Error :
within 1
Processing speed :
within 26s
Air supply :
≥0.65mpa
Stainless Steel :
Available
Technoform :
Availavle
Alupro :
Availavle
swisspacer :
Availavle
Description

Hot Selling Aluminum Spacer Bending Machine For Double Glass Unit With Label Printing/Manipulator Clamping Function

Main features

1. Adopt PLC control system and touch human-machine interface. Multi-screen clear and technical parameter simply input.

2. Feeding material and bending aluminum spacer by servo motor guarantees the precision of the bending form (angle and arc).

3. Aluminum frame have smooth arc, which is beautiful after butyl coating.

4. Bending aluminum frame and theoretical size error is less than 1mm, high speed, high efficiency.

5. Can feed four different size of aluminum spacer with four store tanks.

6. Automactic avoid spacer joint when bending and cutting spacer.

7. Can do shaped aluminum frame.

Main technical parameter

Max.bending size 2000mm*2000mm
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-24mm
Dimensional error: ≤±0.5mm
Angle error ≤±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm

NAME BRAND NAME BRAND
PLC GERMAN SIEMENS Triplet Taiwan AIRTAC
Low voltage electrical apparatus GERMAN SIEMENS Cylinder Taiwan AIRTAC
Servo motor JAPAN FUJI Solenoid valve Taiwan AIRTAC
Servo driver JAPAN FUJI Switch power Taiwan TEND
Relay JAPAN OMRON TOUCH SCREEN Taiwan WEINVIEW
Sensor KOREA AUTONICS GUIDE Taiwan TBI

Machine deatails

High Efficiency Spacer Bending Machine Multi Screen Technical Within 26 S

High Efficiency Spacer Bending Machine Multi Screen Technical Within 26 S

Options

Spacer inkjet printing ,various color is available(option)

Drill hole for gas filling(option)

Machine clamp device help to bend the bigger spacer(option)

Label printing function

ERP connection function
