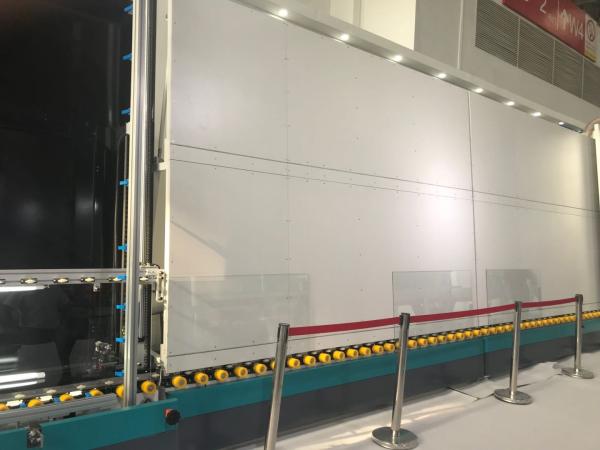

Vertical Double Layer 10m/Min Insulating Glass Production Line
Vertical Double Layer 10m/Min Insulating Glass Production Line
Vertical Double Layer 10m/Min Insulating Glass Production Line
Vertical Double Layer 10m/Min Insulating Glass Production Line
Specifications
Brand Name :
Lijiang
Model Number :
LJZK 2535G
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
66000USD/Set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10Set / Day
Delivery Time :
30-60 working days
Packaging Details :
Woodencase ect
Name :
vertical insulating glass production line insulated glass gas filling production ig line
Power Supply :
Customized
Total Power :
40 KW
Washing Speed :
2-10m/min
After-sales service provided :
Engineers available to service machinery overseas
Description

Vertical Insulating Glass Production Line Insulated Glass Gas Filling Production Ig Line

The Insulatiing screen completes the following tasks: Clean glass The placement of the aluminum frame; Regular double glass Three common ones; Double-tap the glass glass and the second glass.

insulatiing glass machines are low footprint; High performance; It is a special device in glass manufacturing with a strong aluminum shield that provides the benefits of reliable performance and convenient maintenance.

Vertical Double Layer 10m/Min Insulating Glass Production Line

glass production line insulating glass machine vertical glass washing machine insulated glass equipment

Advantage:

1, European design concept, easy and intelligent operation;

2. The world's largest component of the brand is a sustainable, long-lasting product that provides a seamless, durable experience.

3, designed for high-quality glass conversions such as reflective glass, low E glass, tempered glass and laminated glass;

4, large mirror changes and scales, various models and customizations available;

5, large output capacity, 1000pcs output per day;

6 Double layer; Three layers; Accelerated glass and glass that protects against irregular shapes.

7, refill gas automatically when installing glassware;

8, PLC control system, touch screen operation;

Vertical Double Layer 10m/Min Insulating Glass Production Line

Electrical parameters

NAME ORIGIN BRAND
Transfer motor Germany SIEMENS
Brush motor Germany SIEMENS
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Korea AUTONICS
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD

Power Supply 380V,50HZ or customized
Total Power 40 KW
Washing Speed 2-10m/min
Max. working speed 45m/min
Min.Glass size 450*280mm
Max. Glass size

2500*3200

2500*4500(second pressing)
Washing glass thickness 3-15mm
Max. Insulating glass thickness 50mm
Weight 8000kg
Dimension (L*W*H) 23600*3500*3700mm

Vertical Double Layer 10m/Min Insulating Glass Production Line

Company Information

About Our Company
Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world. Kation-Tech, with craftsmanship, profession and honesty, wins the future with you together!
