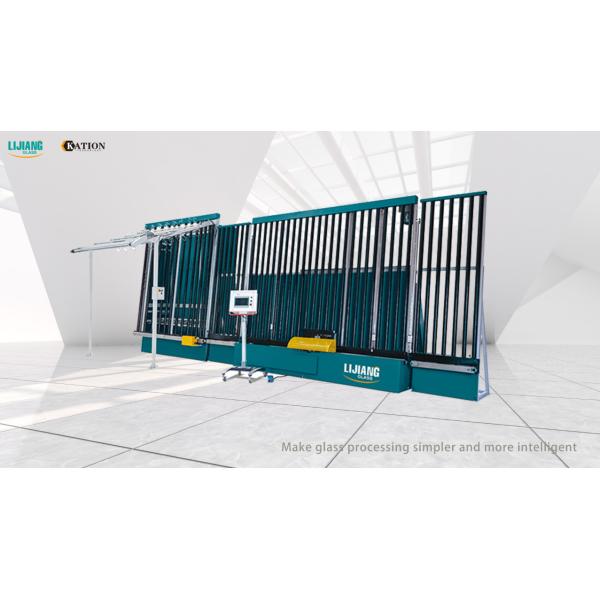

Pre Washing Section Vertical Glass Washing Machine With Stainless Steel And Soft Brushes

Vertical Glass Washing Machine

• 01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

• 02 washing machine

Main feature:

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material

• 03 discharge section

• Storage glass

Main performance features:

The high-strength polymerized plastic spraying back plate with folding structure

The whole process PLC control system, human-machine interface touch screen

Automatic identification of coating and Low-E glass

Online and offline Low-E glass can be cleaned

Automatic temperature control and washing system of water tank

The noise reduction system is combined with the stainless steel air drying system

Intelligent intermittent energy saving working mode

Digital display glue depth adjustment device

Adjustable matrix separated plate pressing system

Automatic lateral rotary positioning system for glass

Connection mode of aviation plug

Automatic cooling box

Automatic positioning system for three glass and special-shaped glass lamination

New automatic butyl extruder machine

Introduction :

Fully automatic butyl extruder machine can line with the insulating glass assembly line to realize fully automatic production, and the whole coating process does not need manual work. This automatic butyl extruder machine consists of pressing wheel system (linear pressing wheel, arc pressing wheel), centering wheel, glue nozzle unit, extrusion unit, transmission unit, rotation mechanism, support mechanism, frame unit, pneumatic system, hydraulic system and control system.

Machine features:

(1) There is the alarm device, it will automatically alarm when there is no glue (there will be a prompt on the touch screen);

(2) Timing heating function, workers can set the start-up time of the equipment in advance, the equipment will automatically start the system heating before the official work quickly.

(3) Automatically adjust the distance between front and back glue nozzles according to the width of aluminum spacer.

(4) The transmission motor is controlled by servo motor, and the transmission speed can reach up to 50m / min.

(5) Large frame support mechanism, to prevent large-scale aluminum frame from shaking by a wide margin at the corner, resulting in frame deformation.

(6) Simple, stable and reliable operation, precise coating effect, fast coating speed and high production efficiency.

Parameters:
