Double glazing insulating glass making manufacturing machine
Double glazing insulating glass making manufacturing machine
Double glazing insulating glass making manufacturing machine
Double glazing insulating glass making manufacturing machine
Double glazing insulating glass making manufacturing machine
Double glazing insulating glass making manufacturing machine
Specifications
Brand Name :
Lijiang
Model Number :
LJZK 2535
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
51000-66000USD/Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10Set / Day
Delivery Time :
30-40 working days
Packaging Details :
Woodencase ect
Name :
Double glazing insulating glass making manufacturing machine
Power Supply :
380V,50HZ or customized
Washing Speed :
2-10m/min
Max. working speed :
45m/min
Washing glass thickness :
3-15mm
Description

Double glazing insulating glass making manufacturing machine

Double glazing insulating glass making manufacturing machine

IGU DGU Online gas filling Insulating glass machine production line

Insulatiing glass machine can complete the following functions : Glass cleaning, Aluminum frame placement ,normal double glass, ordinary three glass, shaped glass and double glass second pressing.

Insulatiing glass machine is a special equipment in the production of aluminum strip insulating glass , which has the advantage of small footprint , high efficiency, reliable performance and convenient maintenance.

glass production line insulating glass machine vertical glass washing machine insulated glass equipment

Double glazing insulating glass making manufacturing machine

Machine Details :

Power Supply 380V,50HZ or customized
Total Power 40 KW
Washing Speed 2-10m/min
Max. working speed 45m/min
Min.Glass size 450*280mm
Max. Glass size

2500*3200

2500*4500(second pressing)
Washing glass thickness 3-15mm
Max. Insulating glass thickness 50mm
Weight 8000kg
Dimension (L*W*H) 23600*3500*3700mm

Double glazing insulating glass making manufacturing machine

About Our Company

LIJIANG IG line adopts the latest technology, its main purpose is to create high-end quality and provide a great deal of useful functionality, improve production efficiency, save production costs and produce maximum benefits.

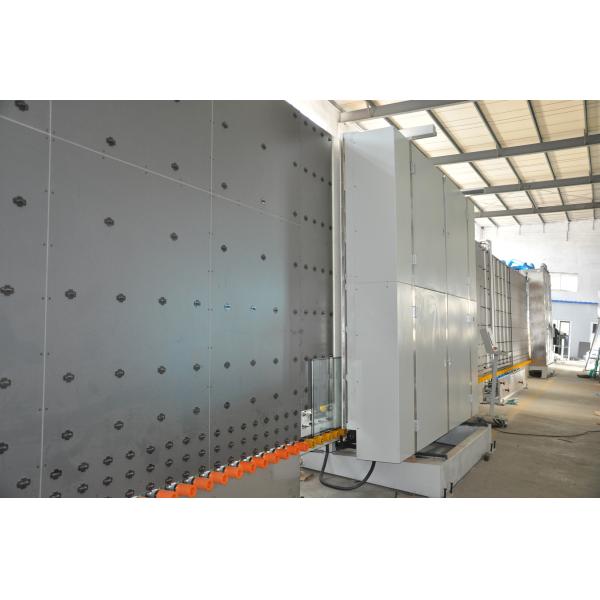

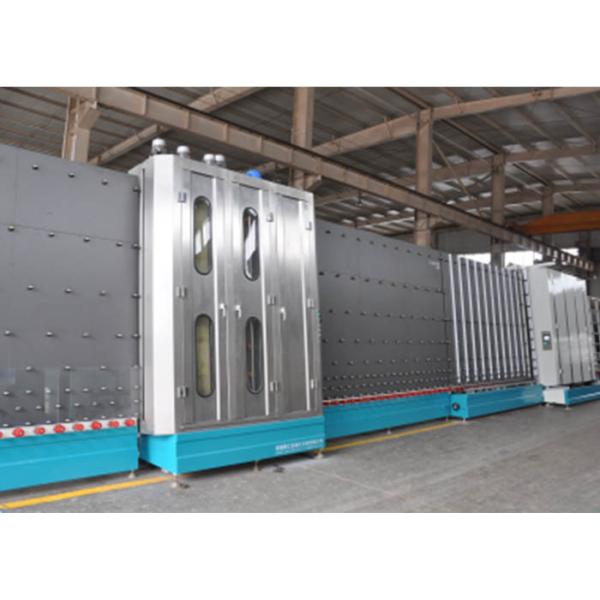

Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.

LIJIANG IG line adopts the latest technology, its main purpose is to create high-end quality and provide a great deal of useful functionality, improve production efficiency, save production costs and produce maximum benefits.

Now LIJIANG mainly has two kinds of IG line with different two different technologies. One uses transfer wheels to transport glass, and the other is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.

Double glazing insulating glass making manufacturing machine

Installation onsite:

Double glazing insulating glass making manufacturing machine

Electrical parameters

NAME ORIGIN BRAND
Transfer motor Germany SIEMENS
Brush motor Germany SIEMENS
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Korea AUTONICS
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD

glass production line insulating glass machine vertical glass washing machine insulated glass equipment

Double glazing insulating glass making manufacturing machine
