Automatic Aluminum Spacer Bending and Cutting Machine for Making Insulating Glass

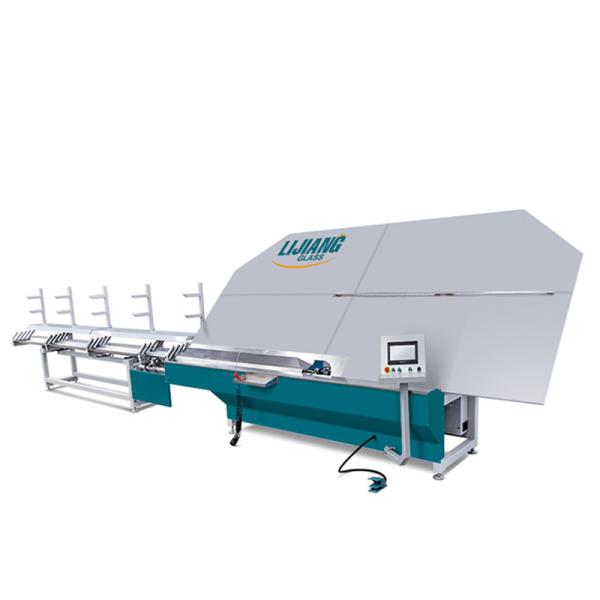

Product overview of Aluminum Spacer Bending and Cutting Machine

Automatic Aluminum spacer bending machine is a special machine for making aluminum frames of hollow glass, which replaces the traditional fabrication technology. Spacer bar bending machine can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the Double glazing glass more better.

Feature of Spacer bending machine

1. Automatic spacer bending machine can cut spacer, bend spacer, feed spacer and advoid the spacer pins automatically. There are 4 sets of racks to storage different sizes of spacers. You can request 12 racks.

2. It can bend aluminium spacer, stainless steel bars and warm-edge spacer. But SS and warm spacer are optional.

3. It can bend rectangle frame and other 8 typles of shapes, such as circle, semicircle and arc frame.


4. The spacer bending machine works very fast, 20s for one 1m*1m frame.
5. The automatic spacer bending machine has many good and special functions, such as USB function, printing logo, printing label or ERP functions.

Detail of Spacer bending machine
1.The spacer's thichkness, length and width
Thickness:0.3mm ; Lengh: 5m or 6m ; 6-27A.
2.Aluminum strip welded by high frequency
3.Bending machine can be automatic cutting and connecting.
4.Adopt Siemens PLC control system

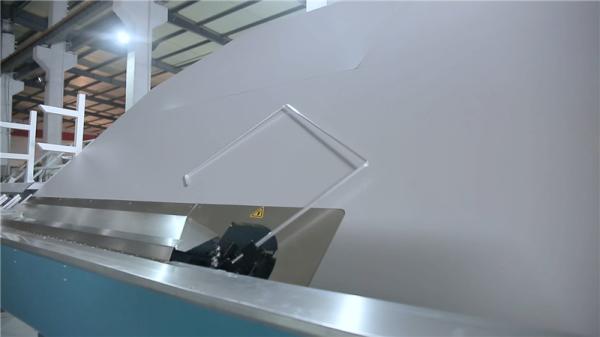

5.The special machine hand device is used to bend big spacer frame

6.Heavy duty connectors is convenience and safety for installation and debugging


Technical parameters

Related product

1.Plastic corner


Product Usage:
Used at right angle connection between ordinary aluminum strips

Technical parameters

2.Aluminum spacer

Features:

100% hole penetration rate

High Purity Aluminum Alloy
Smooth Welding Line and Stable Welding State
Shinning Surface, with No Scratches
Double Row Perforated to keep the molecular sieve and guarantee moisture absorption
Pure Aluminum , No corrosion, No oxidation, No deformation
