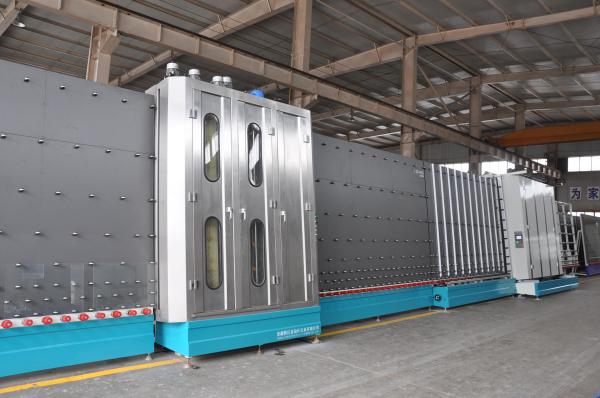

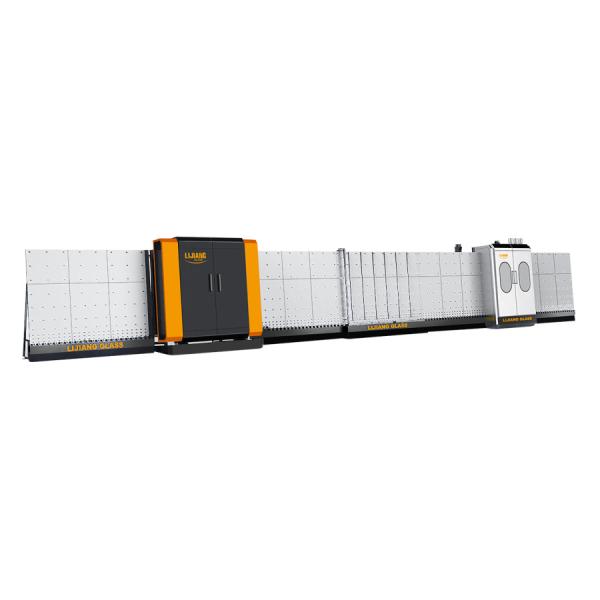

Vertical Automatic Insulating Glass Production Line For IGU Glass
Vertical Automatic Insulating Glass Production Line For IGU Glass
Vertical Automatic Insulating Glass Production Line For IGU Glass
Vertical Automatic Insulating Glass Production Line For IGU Glass
Vertical Automatic Insulating Glass Production Line For IGU Glass
Vertical Automatic Insulating Glass Production Line For IGU Glass
Specifications
Brand Name :
Lijiang
Model Number :
LJBZ2535
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Delivery Time :
2month
Packaging Details :
Container
Max Glass size :
2500X3500mm
PLC :
SIEMANS
Advantage :
stepped glass and triple glass
Description

Vertical Automatic Insulating Glass Production Line For IGU Glass
Vertical Insulating Glass Production Line with max Glass size 2500*3500mm

Automatic Insulating Glass Production Line LJBZ2535
We can provide online remote monitoring, installation and commissioning services during the outbreak​

Product Feature:​
1. with high automatic level is fully controlled by Siemens PLC system,the operation is easy and humanized
2. Touch screen operation interface.It is easy to transfer between automation and hand-operation
3. Self diagnosis system brings much high convenience to the user
4. Automatically distinguish the film of LOW-E and coated glass
5. Insulating glass machine,automatic insulating glass production line washing part is completely made of stainless steel, tempered glass door makes the operation inside clearly monitored, Signal switch on the top of the door avoid possible injure to the operater
6. Energy saving and interrupted system for the washing machine
7.Unique water nozzle design makes the maintenance easy and fast
8.Heating system for the water and blowing air. Start it when the ambient temperature no more than 7 degree
9.Automatic control 6 brushers for Glass
10. There is special system for Producing triple insulating glass
11. Having system for wrong operation and automatically wait the second glass following.
12. Automatic assembly inside the press machine
13.High class casting and processing of spare parts assure good stability of the line
14.The key connections use expanded joint in stead of common union.This guarantee high adjustment precision and conveying reliability​
15.Two pieces of IGU can be made and filled with argon gas in one time (Optional)

Vertical Automatic Insulating Glass Production Line For IGU Glass
Electrical parameters

NAMEORIGINBRAND
PLCGermanySIEMENS
Low voltage electrical applianceGermanySIEMENS
Frequency converterGermanySIEMENS
Servo motorJapanFUJI
Photoelectric switchGermanySICK
Micro SwitchTaiwanTEND
Button and indicator lightFranceSCHNEIDER
Touch screenTaiwanWEINVIEW
Intermediate relayJapanOMRON
Brush motorChinaQINGHUA
Water pumpChinaLINGXIAO
GuideTaiwanHIWIN
Pneumatic ComponentsTaiwanAIRTAC
IG line without filling gas online

NAMEORIGINBRAND
Servo motorGermanySIEMENS
PLCGermanySIEMENS
Low voltage electrical applianceGermanySIEMENS
Frequency converterGermanySIEMENS
Transfer motorTaiwanLINHAI
Brush motorTaiwanLINHAI
Water pumpChinaLINGXIAO
GuideTaiwanHIWIN
Pneumatic ComponentsTaiwanAIRTAC
Electric gaugeChinaMIRAN
Photoelectric switchGermanySICK
Micro SwitchTaiwanTEND
Button and indicator lightFranceSCHNEIDER
touch screenTaiwanWEINVIEW
Intermediate relayJapanOMRON
IG line with gas filling online
Max. glass size2500mm*3500mm
Min. glass size280mm*400mm
Glass thickness3-15mm / 19mm
Insulating glass thickness50mm / 60mm
Glass washing speed2-10m/min
Glass conveyor speed45m/min
Washing brushes3 pairs
Water supplyWater consumption:0.5t/h conductivity:40μs/cm
Air supplyFlow: 0.8m/min
Air pressure≥0.8MPa
Total power3P 380V 50HZ 40KW
Dimension23500*3500*3700mm
Weight6500kg

As professinal Insulating glass machine manufacture in China,except material such as Moleculaer sieve and aluminum spacer and sealant . We are good at develping and producing automatic vertical insulaing glass processing production line ,vertical low-e glass egde deleting machine,automatice robot insulaiting glass production line and so on.We sincerely invite you to visit our factory to see the whole production line, and please kindly send me email now so that we can send you the quotation list, have a good day!
Vertical Automatic Insulating Glass Production Line For IGU GlassVertical Automatic Insulating Glass Production Line For IGU GlassVertical Automatic Insulating Glass Production Line For IGU GlassVertical Automatic Insulating Glass Production Line For IGU Glass
