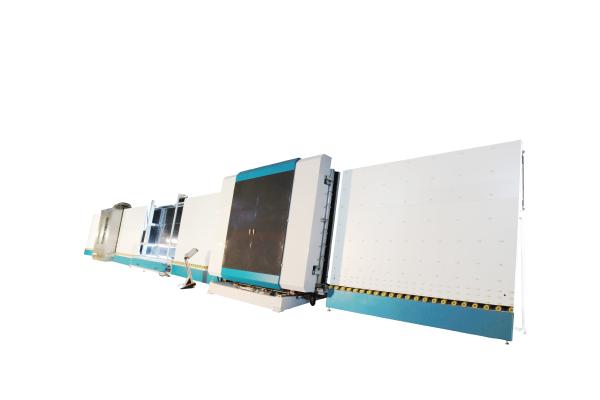

Glass Washing Machine 45m/Min Insulating Glass Production Line
Glass Washing Machine 45m/Min Insulating Glass Production Line
Glass Washing Machine 45m/Min Insulating Glass Production Line
Glass Washing Machine 45m/Min Insulating Glass Production Line
Glass Washing Machine 45m/Min Insulating Glass Production Line
Glass Washing Machine 45m/Min Insulating Glass Production Line
Glass Washing Machine 45m/Min Insulating Glass Production Line
Glass Washing Machine 45m/Min Insulating Glass Production Line
Specifications
Brand Name :
Lijiang
Model Number :
LJZK 2535
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
66000USD/Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10Set / Day
Delivery Time :
30-50 working days
Packaging Details :
Woodencase ect
Name :
Glass Washing Machine Vertical Insulating Glass Production Line
Power Supply :
380V,50HZ or customized
Total Power :
40 KW
Description

Glass Washing Machine Vertical Insulating Glass Production Line

The insulating glass machine can complete the following functions: cleaning glass, laying aluminum frame, ordinary double glass, three ordinary glass, formed glass and second pressing double glazing.

The insulating glass machine is a special equipment in the production of aluminum strip insulating glass, which is characterized by its small size, high efficiency, reliable performance and convenient maintenance.

Glass Washing Machine 45m/Min Insulating Glass Production Line

Glass Washing Machine 45m/Min Insulating Glass Production Line

glass production line insulating glass machine vertical glass washing machine insulated glass equipment

Advantage:

1, Europe design concept, simple and intelligent operation;

2, world famous brands of key components, ensure stable operation and long service life;

3, Designed for high quality glass processing, such as reflective glass, low-e glass, tempered glass, and laminated glass;

4, large glass processing scale, various models and customization available;

5, large output capacity, 1,000 pieces output in one working day;

6, Processable for double-layer, three-layer, step sheet metal and insulating glass with abnormal shape;

7, Automatic filling with argon air gas during the assembly process of the glass panel;

8, PLC control system, touch screen operation;

Glass Washing Machine 45m/Min Insulating Glass Production LineGlass Washing Machine 45m/Min Insulating Glass Production Line

Electrical parameters

NAME ORIGIN BRAND
Transfer motor Germany SIEMENS
Brush motor Germany SIEMENS
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Korea AUTONICS
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD

Power Supply 380V,50HZ or customized
Total Power 40 KW
Washing Speed 2-10m/min
Max. working speed 45m/min
Min.Glass size 450*280mm
Max. Glass size

2500*3200

2500*4500(second pressing)
Washing glass thickness 3-15mm
Max. Insulating glass thickness 50mm
Weight 8000kg
Dimension (L*W*H) 23600*3500*3700mm

Glass Washing Machine 45m/Min Insulating Glass Production Line
