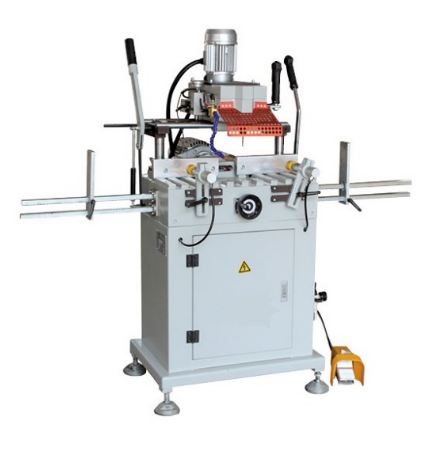

Aluminum Plastic Slot Processing Machine Door And Window Lock Hole
Aluminum Plastic Slot Processing Machine Door And Window Lock Hole
Aluminum Plastic Slot Processing Machine Door And Window Lock Hole
Aluminum Plastic Slot Processing Machine Door And Window Lock Hole
Specifications
Brand Name :
LIJIANG
Model Number :
LJLSKC03-120
Certification :
CE
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
30sets/month
Packaging Details :
Wooden box
Name :
Lock hole slot processing machine
Input power :
380V / 50Hz
Working pressure :
0.6 ～ 0.8MPa
Profiling cutter diameter :
MC-∮5*80-∮8-20L1
Profiling spindle speed :
12000r/min
Three hole drill diamete :
MC-∮10*130-M10-70L2
Three hole drilling speed :
900r / min
Three hole drilling depth :
0～100mm
Machining height of three hole drill :
12～60mm
Clamping profile width :
0～120mm
Description

Aluminum plastic door and window lock hole slot processing machine

Aluminum plastic door and window lock hole slot processing machine is used to process the installation hole slot of the transmission of plastic steel doors and windows. The machine is composed of three hole drilling and profile milling. It can realize the drilling of three holes in horizontal direction and profile milling of long circular groove in vertical direction. One clamping can complete two processes, ensure the position accuracy of groove and hole, and work efficiency is very high.

Performance characteristics:
1.Aluminum plastic door and window lock hole slot processing machineis used for milling handle holes of plastic doors and windows and hardware installation holes;
2.The three hole drill is equipped with a special twist drill, which can drill and cut plastic profiles inlaid with steel lining plates;
3.The three hole drill is provided from the back to the front for easy

Technical parameters:

Input power 380V/50Hz
Working pressure 0.6 ～ 0.8MPa
Air consumption 50L / min
Total power 2.25kw
Motor power of three hole drill 1.1kw
Power of profiling motor 0.75kw
Profiling cutter diameter MC-∮5*80-∮8-20L1
MC-∮8*100-∮8-30L1
Profiling spindle speed 12000r/min
Three hole drill diameter MC-∮10*130-M10-70L2
MC-∮12*135-M10-75L2
Three hole drilling speed 900r / min
Three hole drilling depth 0-100mm
Machining height of three hole drill 12-60mm
Clamping profile width 0-120mm
Overall dimension of main engine 800*1130*1550mm
Weight 300kg
