Automated Quick Glue Butyl Coating Machine For Butyl Spreading 0-47m/Min
Automated Quick Glue Butyl Coating Machine For Butyl Spreading 0-47m/Min
Automated Quick Glue Butyl Coating Machine For Butyl Spreading 0-47m/Min
Automated Quick Glue Butyl Coating Machine For Butyl Spreading 0-47m/Min
Automated Quick Glue Butyl Coating Machine For Butyl Spreading 0-47m/Min
Automated Quick Glue Butyl Coating Machine For Butyl Spreading 0-47m/Min
Automated Quick Glue Butyl Coating Machine For Butyl Spreading 0-47m/Min
Automated Quick Glue Butyl Coating Machine For Butyl Spreading 0-47m/Min
Specifications
Brand Name :
LIJIANG
Model Number :
LJTB01
Certification :
CE
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month
Delivery Time :
Within 15days
Packaging Details :
Wooden box
Name :
Butyl extruder machine
Speed :
0-47m/min
Diameter of butyl cylinder :
200mm
Aluminum spacer width :
6A-27A
Description

Automatic Quick Glue Butyl Coating Machine

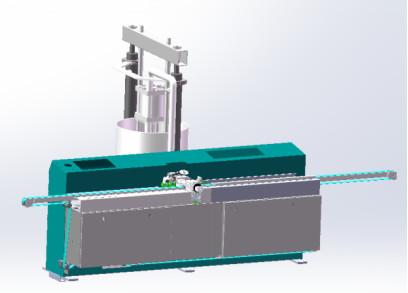

Automatic Butyl extruder machine LJTB 01 is used for spreading aluminum spacer frames evenly with hot melt butyl.

The feature of Butyl extruder machine

1.The butyl extruder uses large electrical control panel which makes the operation more easier than before.

Automated Quick Glue Butyl Coating Machine For Butyl Spreading 0-47m/Min

2.Silicone extruder machine can Quick Glue ,47m/min Fast speed

The coating machine speed can be adjusted from 0m/min to 47m/min

Automated Quick Glue Butyl Coating Machine For Butyl Spreading 0-47m/Min

3.Most cost-effective

Butyl rubber coating machine consumes very little butyl rubber,4g /m

Automated Quick Glue Butyl Coating Machine For Butyl Spreading 0-47m/Min

4.200L Maximizes your productivity

Automated Quick Glue Butyl Coating Machine For Butyl Spreading 0-47m/Min

5.KINCO Touch Screen

Clear interface, Simple operation, Smart touch screen,Updated programming.

Automated Quick Glue Butyl Coating Machine For Butyl Spreading 0-47m/Min

6.Germany HAVE Valve

Adopt Germany’s Harvey valve, more stable performance.

Automated Quick Glue Butyl Coating Machine For Butyl Spreading 0-47m/Min

7.Glue cylinder

Adopt the upright structure, easy to change butyl.

Automated Quick Glue Butyl Coating Machine For Butyl Spreading 0-47m/Min

Small extruder machine Technical Data

Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 4-30mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 415v 50 hz 3 phrase
Dimension 2950×890×1004mm(L×W×H)
Weight 750kg
