Horizontal glass washing machine for float glass low-e glass and coating glass

LIJIANG GLASS-Solution for Insulating Glass Processing

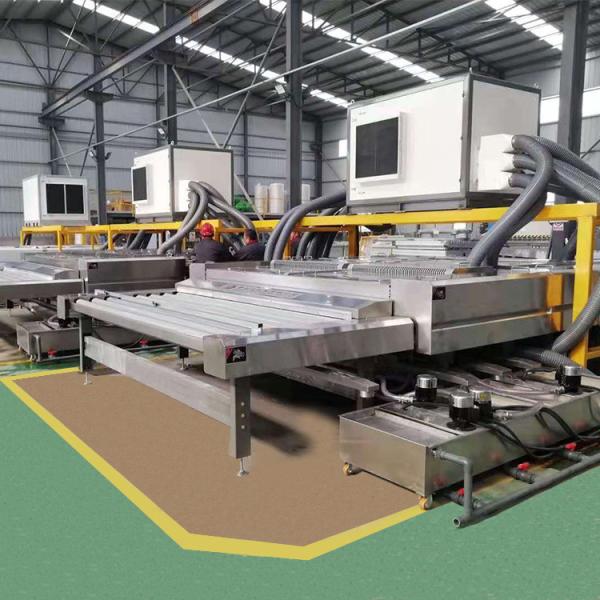

Horizontal Glass Washing Machine LJWBQJ2500

Glass washing machine LJWBQJ2500 used

for cleaning and drying the upper and lower

surfaces of ordinary plate glass and high quality

low-e glass,it is composed of incoming segment,

cleaning air-drying segment and outgoing segment.

7. Total power: 42KW(water-bearing wind heating: 15KW)

8. Water source: self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)

9. Power source: 380V 50Hz

10. Dimensions (length × width × height) : approximately 6260×4800×3100

11. Weight: about 3940kg

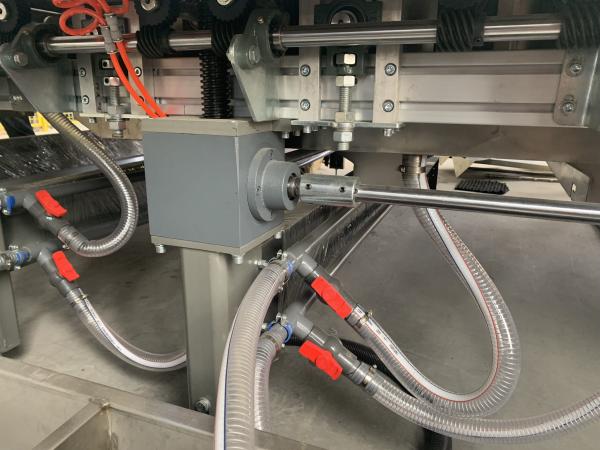

• ♦ The rubber roller is made of vulcanized rubber with stainless steel shaft；
• ♦ The washing part in contact with water is made of stainless steel；

♦The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,

♦The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning；
