Specifications
Brand Name :
LIJINANG
Model Number :
LJBZ2535
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
60000~65000 USD
Payment Terms :
L/C, T/T
Supply Ability :
20 Sets per year
Delivery Time :
60 works day
Packaging Details :
23500*3500*3700mm 2*40HQ
Name :
Vertical Insulating Glass Production Line
Type :
LJBZ2535
Max. glass size :
2500mm*3500mm
Min. glass size :
280mm*450mm
Glass thickness :
3-15mm
Insulating glass thickness :
60mm
Description

Vertical Insulating Glass Production Line LJBZ2535

The best Vertical Insulating Glass Production Line.Hot sale!!

The best Vertical Insulating Glass Production Line.Hot sale!!

Vertical Insulating Glass Production Line LJBZ2535

LIJIANG production line adopts the latest technology, its main purpose is to create high-end quality,

to provide customers with the latest production technology, improve production efficiency, save

production costs and produce maximum benefits.

Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1)

uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating

technology to transport glass. This new technology is to prevent the glass from being contaminated by

wheels and leaving traces, so new technology is used to improve the IG production’s high quality.

The best Vertical Insulating Glass Production Line.Hot sale!!
• 01 transfer section
Coating detection mechanism, automatic detection of offline Low-e film
• 02 washing machine
Main feature:
• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass
• Pre-washing (Optional)
• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by
the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each
screw is not loose, and avoid the resonance of the air knife.
• The air knife can automatically adjust the width of the air knife according to the thickness
• The operation box with washing speed display, can accurately display washing speed (8-10m)
• Water tank automatic temperature control, water replenishing system
• European silencer system
• Stainless steel material
• 03 discharge section
• Storage glass
• 04 inspection and installation section
The new structure of this section is changed to an inline beam lifting structure (double beam).
It is easy to inspect and wipe the glass.
• 05 transfer section
• Automatic measurement of glass thickness. It can be used according to actual needs when working.
• 06 pressing and filling section
Main feature:
• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice

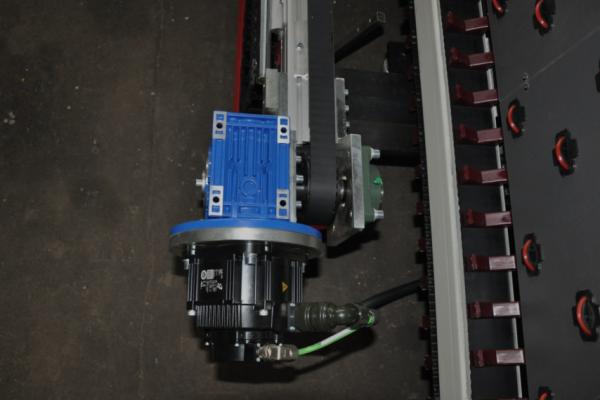

• Adopts conveyor belt to transfer glass, uses servo motor to press glass
• The pressing plate can be opened for easy maintenance
• Pressing board with adjustable structure to guarantee long-lasting service life
• Automatically fill argon gas with significant sealing effect, higher argon content
• Set zones to fill different size of glass with follow-up sealing method reduces argon loss
• Can set gas value and show the process of filling gas on the touch screen
• Fast reacting sensor for permanent control of gas filling process
• Gas concentration can reach more than 90%
• No need to drill holes on the spacer frame
• Standard gas is Argon gas
• 07 discharge section
• Storage glass
• Can be connected to sealing machine

The best Vertical Insulating Glass Production Line.Hot sale!!

Max. glass size 2500mm*3500mm
Max glass size for filling gas 2500mm*3200mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg

Electrical parameters

NAME ORIGIN BRAND
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Servo motor for step glass Japan FUJI
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Brush motor China QINGHUA
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
IG line without filling gas online
