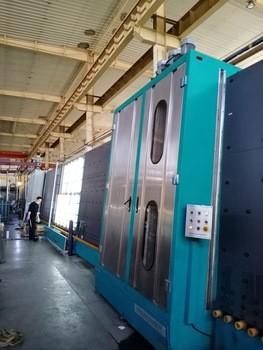

LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line
LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line
LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line
LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line
Specifications
Brand Name :
Lijiang
Model Number :
LJBZ2535
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable,
Payment Terms :
L/C, T/T
Supply Ability :
10set/month
Delivery Time :
60days
Packaging Details :
wooden case or container
Name :
Vertical Automatic Insulating glass production line
Advantage :
gas filling on line
PLC :
Siemens
Description

LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line

LIJIANG GLASS-FOR WORLD GLASS MANUFACTURE SERVICE

LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line

LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line

LJBZ2535 Vertical Automatic Insulating glass

production line with gas filling on line

APPLICATION
As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.

LJBZ2535 Vertical Automatic Insulating glass

production line with gas filling on line

include 7 parts: (from right to left)

1,Loading section(with low-e checking)

2,washing and drying section(can washing low-e glass)

3,conveyor section

4,checking and assembly section

5, conveyor , measure and sensor section

6,press part with gas filling

7,unloading section

• Adopt SIEMENS control system, keep stable performance • PLC control system, touch screen interface

• Automatically adjust the depth of glue with digital display

• Using servo to control system, modular function, superposition function

• Applicable to produce stepped IG, triple IG and shaped IG • Two pieces of IGU can be made and filled with argon gas in one time (Optional)

• Min & Max glass sizes can be optional

LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line

LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line

LJBZ2535 Vertical Automatic Insulating glass

production line with gas filling on line

Main technical parameters

Max.glass size

2500*3500mm(LJBZ2535)

Gas filling line 2535G:2500*3200mm
Min.glass size 280*450mm
Glass thickness 3-12mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed: 48m/min
Washing brushes 3 pairs
Water supply: Water consumption:0.5t/h conductivity:≤50μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P380V 50HZ 34KW
Dimension 23500*3500*3700mm

LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line

LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on lineLJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line

Parts list

Components Brand Remark
Servo motor GERMAN SIEMENS For stepped glass
Servo driver GERMAN SIEMENS For stepped glass
Servo motor GERMAN SIEMENS For transfer
Servo motor GERMAN SIEMENS For press
PLC GERMAN SIEMENS
Low voltage component GERMAN SIEMENS
Frequency converter GERMAN SIEMENS
Switching power supply Taiwan MW
Optoelectronic switch Korea Autonics
Pneumatic component Taiwan Airtac
Pneumatic component Japan SMC
Touch screen Taiwan Wenview
Travel switch Taiwan Tiande

Option function of LJBZ2535 Vertical Automatic Insulating glass

production line:Gas filling on line

  • Gas filling online, we can input the suitable gas proportion value on the touch screen , during the gas filling process, the touch screen can show us the whole gas filing process visually . (You can see the video that I have sent you before.)We are the first and the only one company who can show the argon percentage on the touch screen on line,its very useful for customer,When argon gas filling,it will show the whole process on the screen. When it reach the data customer set ,It will alarm and stop. So it can save the argon gas. And save the time.

LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on lineLJBZ2535 Vertical Automatic Insulating glass production line with gas filling on lineLJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line
