High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment
High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment
High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment
High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment
High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment
High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment
Specifications
Brand Name :
Lijiang
Model Number :
LJTB01
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable,
Payment Terms :
T/T, L/C
Supply Ability :
10set/month
Delivery Time :
10days
Packaging Details :
wooden case or container
Name :
High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment
working speeding :
5-47m
Aluminum Spaer width :
5-47m/min
Description

High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment

LIJIANG GLASS-FOR WORLD PROCESSING GLASS MANUFACTURE SERVICE

High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment

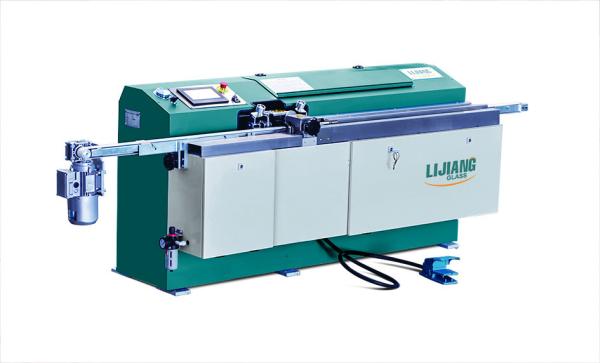

Butyl Extruder Machine LJTB 01

High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment

►►►►►

Butyl Extruder Machine LJTB 01 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The butyl extruder uses large electrical control panel which makes the operation more easier than before. The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now.

² Technical Data

Squeeze pressure

10-18MPa

Temperature

110~140℃

Aluminum spacer width

4-30mm

Speed

0-47m/min

Diameter of butyl cylinder

200mm

Air supply

0.4m³/min

Air pressure

≥0.6MPa

Total power

380V, 5KW, 50HZ

Dimension

2600×680×1100mm(L×W×H)

Weight

650kg

High Speed Butyl Extruder Machine For Insulating Glass Processing EquipmentHigh Speed Butyl Extruder Machine For Insulating Glass Processing Equipment

• PLC control system, touch screen interface

• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust

• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

• Fast preheat, improve work efficiency

• with preheating function

• With exhaust inflatable function, improve the quality of sealing and save time for plastic

• Quickly coating speed,can up to 47m/min

• Saving the amount of butyl
