Specifications
Brand Name :
LIJIANG
Model Number :
LJBZ2535
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
US110000
Payment Terms :
L/C, T/T
Supply Ability :
10sets/month
Delivery Time :
15work days
Packaging Details :
container
name :
Automatic Insulating Glass Production Line LJBZ2535
Max. glass size :
2500mm*3500mm
Min. glass size :
280mm*400mm
Glass thickness :
3-15mm
Insulating glass thickness :
50mm / 60mm
Glass washing speed :
2-10m/min
Glass conveyor speed :
45m/min
Washing brushes :
3 pairs
Water supply :
Water consumption:0.5t/h conductivity:40μs/cm
Air supply :
Flow: 0.8m/min
Air pressure :
≥0.8MPa
Total power :
3P 380V 50HZ 40KW
Dimension :
23500*3500*3700mm 6500kg
Weight :
6500kg
Description

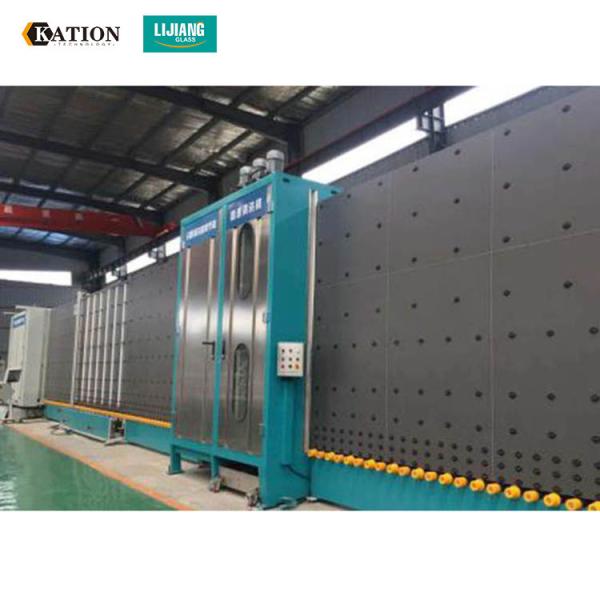

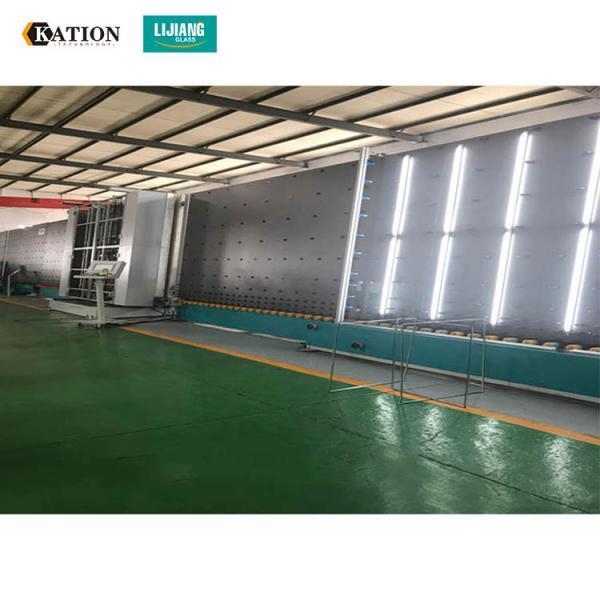

Automatic Insulating Glass Production Line LJBZ2535

Product description

Insulating Glass Production Line for double glazing class insulated glass equipment

The Lijiang glass processing machinery uses the latest technology. Its main purpose is to create high-end quality, provide a large number of useful functions, improve production efficiency, save production costs, and produce maximum benefits. Now Lijiang has two main IG lines and two different technologies. One is to use the runner to transport glass, and the other is to use air suspension technology to transport glass. This new technology is to prevent the glass from being contaminated by the wheels and leaving traces, so the new technology is used to improve the high quality of IG products.

Specification

Max. glass size 2500mm*3500mm
Min. glass size 280mm*400mm
Glass thickness 3-15mm
Insulating glass thickness 50mm / 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg

  • Transfer wheel vs air float technology

Insulating Glass Production Line for double glazing class insulated glass equipment Insulating Glass Production Line for double glazing class insulated glass equipment

  • The washing machine has a low-e glass sensor in it
  • The washing machine is made of 304 stainless steel

Insulating Glass Production Line for double glazing class insulated glass equipment

  • The washing machine USES 6 soft (low-e) brushes with a diameter of only 0.1 mm.

Insulating Glass Production Line for double glazing class insulated glass equipment

  • The glass production machinery adopts the advanced noise prevention system in Europe to create a good working environment for employees

Insulating Glass Production Line for double glazing class insulated glass equipment Insulating Glass Production Line for double glazing class insulated glass equipment

  • Insulating glass equipment Water heating system and water filter system

Insulating Glass Production Line for double glazing class insulated glass equipment Insulating Glass Production Line for double glazing class insulated glass equipment

  • The special structure inside the washing machine can automatically recognize glass thickness. Allowing different thicknesses of glass to be transferred quickly, increasing production speed. According to the test, it takes only 22s to produce a 1m*m insulating glass.

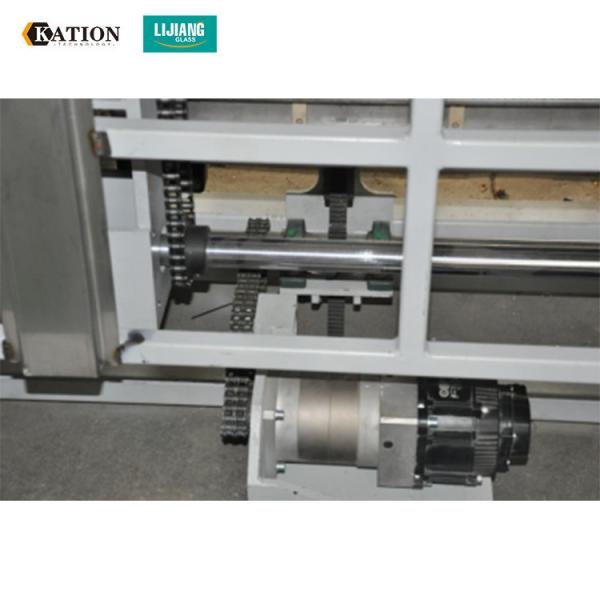

  • The pressing box uses servo motor and timing belt to support pressing IG units.

Insulating Glass Production Line for double glazing class insulated glass equipment

  • It is the first one in China to use adjustable points to ensure that the platen will never deform.

Insulating Glass Production Line for double glazing class insulated glass equipment

  • Energy saving of pressing box

  • Automatic High - speed filling argon gas

Insulating Glass Production Line for double glazing class insulated glass equipment

FAQ

Insulating Glass Production Line for double glazing class insulated glass equipment

Q:What are the payment terms?

A: Wire transfer, letter of credit and other payment methods can be negotiated.

Q: What is the guarantee about this machine?

Answer: 1).We guarantee 12 months.

2).Provide 24-hour technical support via email or phone

3).English manual and video tutorial

4).We will provide consumables at agent prices

5).Online service 24 hours a day, free technical support.

Q: How about your warranty?

A: Generally speaking, our warranty period is one year.
During the warranty period, we can provide technical support, feedback to you within 24 hours, and help you repair your problem controller for free, even if it is not from our factory.

Q:Can we visit your factory before ordering?

A: Yes, we are very welcome and sincerely invite you or your team to visit our factory. We will help you arrange the hotel and pick you up at the airport.

Q: What are the delivery conditions?

A: Most of the time, our factory has stock.
