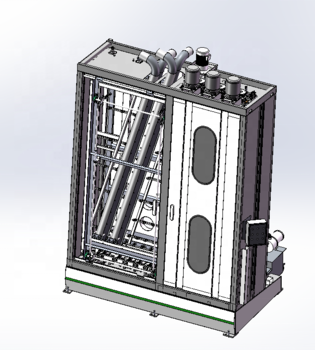

2000Mm Height Vertical Glass Washing Machine And Drying Machine

Company Introduce

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole world. As it is close to Beijing-Shanghai high-speed rail station, the transportation is very convenient.

The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.

Details Introduce

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass
• Pre-washing (Optional)
• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.
• The air knife can automatically adjust the width of the air knife according to the glass thickness
• The operation box with washing speed display, can accurately display washing speed (8-10m)
• Water tank automatic temperature control, water replenishing system
• European silencer system
• Stainless steel material

Washing section:
1. It is made of stainless steel, the brush bearing is made of Harbin stainless steel, which is famous in China;
2.3 pairs of soft brush is equipped with 0.1mm brush wire;
3. Use European anti noise mode to reduce noise;

Drying section :
1. The front and rear extrusion wheels are powered to keep different sizes of glass can pass quickly and smoothly;
2. The new type air knife could adjusts the size of the air vent through the aluminum duck beak; reduces the number of adjusting screws, ensures that each screw is not loose, and avoids the resonance of the air knife.
3. The width of the air knife can be adjusted automatically according to the thickness of the glass
