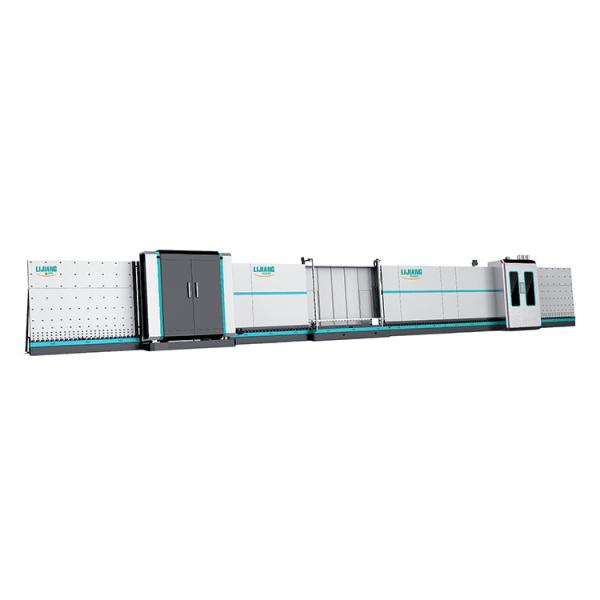

Double Glazing Insulating Glass Production Line 6.5m/min Glass Sealing Machine
Double Glazing Insulating Glass Production Line 6.5m/min Glass Sealing Machine
Double Glazing Insulating Glass Production Line 6.5m/min Glass Sealing Machine
Double Glazing Insulating Glass Production Line 6.5m/min Glass Sealing Machine
Double Glazing Insulating Glass Production Line 6.5m/min Glass Sealing Machine
Double Glazing Insulating Glass Production Line 6.5m/min Glass Sealing Machine
Specifications
Brand Name :
LIJIANG
Model Number :
LJBZ2025G
Certification :
advisory
Place of Origin :
CHINA
MOQ :
1sets
Price :
70,000 USD
Payment Terms :
L/C, T/T
Supply Ability :
30 sets/month
Delivery Time :
14 work days
Packaging Details :
Ocean
color :
customer
Processing glass size :
customer
Voltage :
380V 50HZ
Condition :
New
Dimension(l*w*h) :
25500H*3000W*3500H mm
After-sales service provided :
Engineers available to service machinery overseas
Description

glass production line/insulating glass machine/glass sealing machine/insulating glass equipment/double glazing glass

PARAMETER:

Equipment Model Parameter name Lijiang 1800A Lijiang 1800B
Power supply 380V 50Hz 380V 50Hz
Total power 23.4KW 23.4KW
Process glass size Max 2500×1800mm 2500×1800mm
Min 450×450mm 450×450mm
Original glass thickness 3~12mm 3~12mm
Max D-value of different edge glass 0mm 50mm
Working speed Washing speed 6.5m/min 6.5m/min
Conveying speed after washing 15~32m/min 15~32m/min
Outline dimension L×W×H (mm) 16000×2000×2850 16000×2000×2850
Net weight 5000kg

5000kg

FEATURE:

-Automatically distinguish the coating side of coated glass and low-E glass.

-Static state load glass when adding glass material to ensure safety in production.

-The washing machine adopts stainless steel and other corrosion resistant material, good waterproof, security, clean, and long useful life. Adopt waterproof bearing without oil lubricant.

-Can clean 3~25mm thickness glass, with wide using range.

-It can process same edge double insulating glass with high efficiency.

-Adopts the world famous brand low-voltage electrics, sensor and PLC, etc.

- PLC control system with touch screen interface, simple operation and high automatic.

-Treat the surface of plate guard with baking paint, powder coated. Appearance is beautiful and durable.

-The dry part use circulation hot wind that ensure the dry effect for glass and reduce the noise.

DETAIL:

PLC Schneider Touch screen Schneider
Frequency controller 0.75Kw Schneider Circuit breaker DZX4-100 Schneider
Circuit breaker 6.3-10A Schneider AC Contactor Schneider
Relay OMLON Photo switch Banner
Solenoid valve Airtec Cylinder JPC

Double Glazing Insulating Glass Production Line 6.5m/min Glass Sealing Machine

Double Glazing Insulating Glass Production Line 6.5m/min Glass Sealing MachineDouble Glazing Insulating Glass Production Line 6.5m/min Glass Sealing MachineDouble Glazing Insulating Glass Production Line 6.5m/min Glass Sealing Machine

other product:

1.Spacer Bending Machine

2.Automatic Desiccant Filling Machine

3.Low-E Glass Edge Remover Machine

4.Silicone Sealant Sealing Robot

5.Manual Belt Grinding Machine
