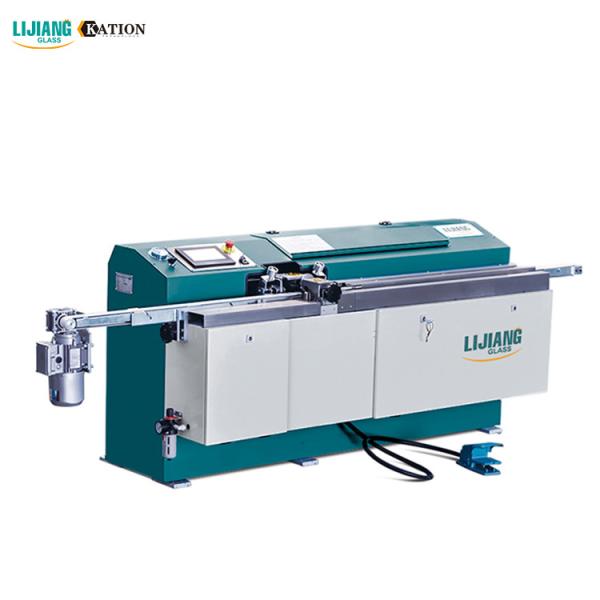

30m/Min Butyl Adhesive Coater For Insulating Glass Hollow Glazing Processing
30m/Min Butyl Adhesive Coater For Insulating Glass Hollow Glazing Processing
30m/Min Butyl Adhesive Coater For Insulating Glass Hollow Glazing Processing
30m/Min Butyl Adhesive Coater For Insulating Glass Hollow Glazing Processing
30m/Min Butyl Adhesive Coater For Insulating Glass Hollow Glazing Processing
30m/Min Butyl Adhesive Coater For Insulating Glass Hollow Glazing Processing
30m/Min Butyl Adhesive Coater For Insulating Glass Hollow Glazing Processing
30m/Min Butyl Adhesive Coater For Insulating Glass Hollow Glazing Processing
Specifications
Brand Name :
Jinan Lijiang Glass Machinery
Model Number :
LJTB01 Butyl Extruder Machine
Certification :
CE & ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
Discussible
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
5-8 working days
Packaging Details :
Wooden Cases Package and Container Transfer
Voltage :
380V 50HZ
After-sales service provided :
Engineers available to service machinery overseas
Weight :
500kg
Product name :
Insulating Glass Making Machine Butyl Extruder Machine
Warranty :
12 Months
Squeeze pressure :
12~16Mpa
Conveying speed :
0-30m/min
Extruding pressure :
110-160℃
Description
Automatic Butyl Extruder Coating Machine for Aluminum Spacers Insulating Glass Double Glass Hollow Glasing Processing

LJTB01 Butyl Extruder Machine
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.

Benefits & Advantages
◆ Controlled by PLC.
◆ Digital Display system can show you the quantity of the glue automatically.
◆ Butyl spreading is well-proportioned and the linearity is good.
◆ Temperature and pressure can adjust automatically. Also time of pre-heating can be set, then the machine can be turned on and off automatically.
◆ Adopting the imported hydraulic and pneumatic supercharging system makes sure of the stability and continuity of the glue.
◆ The glue jar warning system will make alarm when glue material is used up.
◆ Advanced device guarantees and best spreading effect on the arc aluminium frame.
Name
Brand
Original
PLC
KINCO
China
Valve
HAWE
German
Low voltage electrical apparatus
SIEMENS
German
Hydraulic and pneumatic supercharging system
MAXIMATOR
German
Frequency converter
KINCO
China
Pneumatic components(cylinder/valve)
ARTAC
Taiwan
Quick exhaust valve/Vacuum generator
SMC
Japan SMC
Travel light
OMRON
Japan
Optical fiber
OMRON
Japan

1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly. 2. Quickly speed of warming, improve work effect.

1. Adjustable coating speed, can up to 0-47m/min. 2. Can save about 40% materials, only 5g/m.

1. Extruder head height adjustment structure. 2. Automatic centering and clamping structure.

1. Stable temperature and it is convenient to adjust the sealing material automatically.
