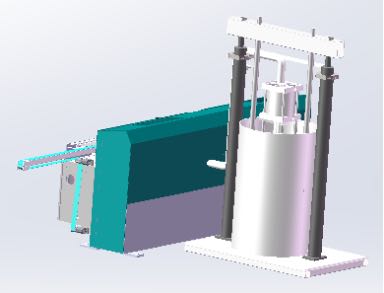

Automatic Insulating Glass Aluminum Spacer Bar Butyl Glue Coating Machine

Automatic butyl extruder machine is the necessary equipment for manufacturing aluminum-frame type insulated glass, even it is necessary for Vertical insulating glass processing line.The butyl that be glued on the both side of aluminum frame automatically, the glue is the first coating sealant for insulating glass. So the quality of the butyl directly decides the quality of insulating glass and using life. The butyl extruder machine have many types in the market, including manual and automatic butyl coating machines.

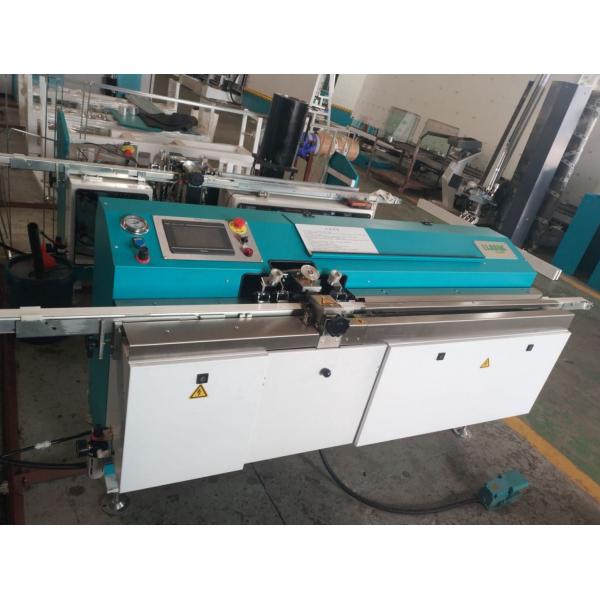

The Details Of Butyl Extruder Machine LJTB 01

Main feature :

• PLC control system, KINCO touch screen interface

• Hydraulic system using German brands

• Alarm system, reminding adding butyl glue

• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable

• Exhaust function

• Short preheating time, improve work efficiency

• Coating shape frames, the roller device can be selected at will

• Fast coating speed, can up to 47m/min

• Stable pressure and even coating

• Saving glue. The amount of glue on both sides can reach 4g / m

• Big glue barrel, 200L. (Optional)

Technical data :

Electrical parameters

Function description

This machine has kinds of functions, please see the below instructions:

1. Alarm device of no butyl When there is no butyl, it can automatic alarm(There is a reminder on touch screen);
2. Device of air quickly inlet to the rubber cylinder When need to change butyl, open the inlet valve before the rubber cylinder going back, immediately blow air into the cylinder can help the cylinder quickly go back.
3. Preheating function When using the machine, it can start to work normally until the temperature of nozzles and gluing base up to set temperature. In order to improve using efficiency, workers can set starting time in advance, so it can automatic start heating system before working, no need to wait;
4. Delay switch off When machine is normally working, gluing needles are in heating condition. When you want to switch off the machine, if do it immediately, it’s easy to destroy the belt. So the function of delaying switch off can improve using life of belt.
5. Device of providing butyl for desiccant filling machine, it can provide butyl to desiccant filling machine at any time in the condition of power-on;
6. Sleeping mode Under sleeping mode, equipment transmission, heating are normal operation, but cut off the gas source. It can effectively reduce the waste of gas.
7. Power failure that gas failture After finishing the work, can be turned off power, no need to cut off the gas source.

(8)Automatic measure the width of aluminum spacers----device of thickness measurement it can automatic adjust the distance of back and front needles by width of aluminum spacers;

(9)Frequency control motor Transfer motor is frequency control motor and max speed can up to 47m/min.

(10) This machine is easy to operate, it’s stable and reliable, the effect of gluing is good, speed is quick and the product is efficient.
