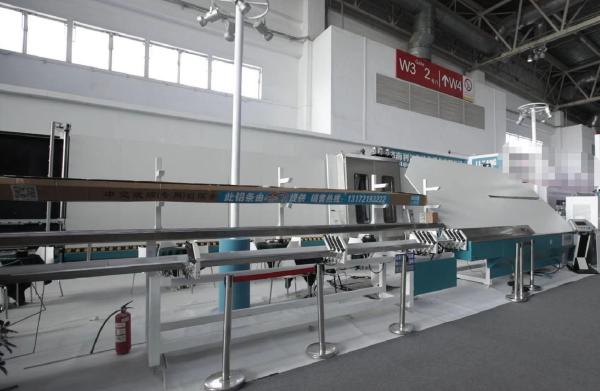

Automatic Spacer Bending Machine - LJZW2020

Technical data of aluminum bending machine

Electrical parameters of spacer bending machine

Main feature of automatic spacers bending machine

• Siemens 1200 PLC control system with fast working speed

• 4 groups of storages (2 or 12 groups of storages can be optional)

• Automatically cut and feed aluminum spacers

• Automatically avoid the pins while bending and cutting

• Bend spacer frames continuously

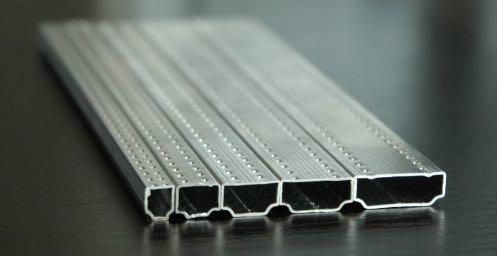

• Aluminum spacers are available in sizes of 6A-27A

• Different bending tools for different sizes of spacers

• Pause and Reset device for handling equipment failures

• Bend aluminum spacer, smooth stainless steel, warm spacer

• Connect to ERP system (Optional)

• USB input function, read the excel format file directly

• Automatically drill holes for filling argon gas (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)

• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)

Details introduce

• Spacer printing code function (Optional)

• 2 or 12 groups of storages (Optional)

• Printing label sticker function (Optional)

• Bending stainless steel ( Optional)

• Bending warm spacer (Optional)

• Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A (Optional)

Semi-manual Spacer Bending Machine

Main Features:

1) Semi-manual spacer bending machine without spacer stocks.
2) The machine adopt PLC controller, manual load spacer, automatic bending after calculated the size.
3) Recommend for rectangle frame bending only.
4) The machine feature easy operation and high efficiency.

Parameter:

Max. Bending Size: 2000 x 2000 mm

Min. Bending Size: 300 x 300 mm

Bending angle: 90 degree

Glass Drilling Machine LJDK02

The glass drilling machine is adopted pneumatically grip. Aluminous positioning, drilling is alternatively done by upper and reverse drills, feeding is automatically operated, automatic remove wasted glass. Operation platform can be pneumatically elevated. It combined function of semi-automatically controlled and automatically controlled.

Technical specifications:

1. drill diameter:4~100mm

2. glass thickness:3~19mm

3. total power:2.3kw

4. weight:1000kg

5. Occupation area:2500 x 2000 x 2200mm (L x W x H)

6. Max size of glass: 2000*2000mm
