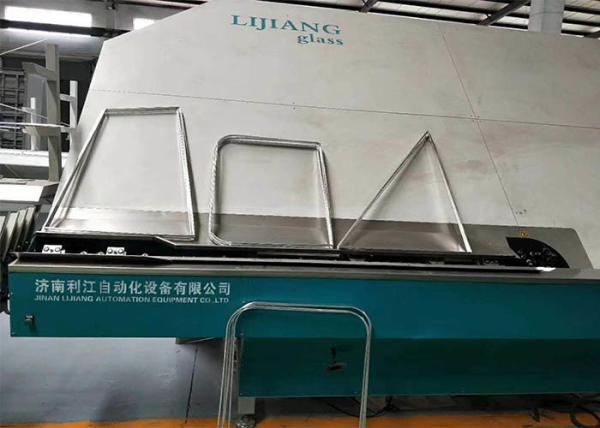

Servo Motor 25s Aluminium Profile Bending Machine For Insulating Glass Processing
Servo Motor 25s Aluminium Profile Bending Machine For Insulating Glass Processing
Servo Motor 25s Aluminium Profile Bending Machine For Insulating Glass Processing
Servo Motor 25s Aluminium Profile Bending Machine For Insulating Glass Processing
Specifications
Brand Name :
LIJIANG GLASS
Model Number :
LJZW2020A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
60 days
Packaging Details :
Container
Production name :
Automatic Aluminum Spacer Edge Bending Machine
Max spacer size :
2000mm*2000mm
Min.bending machine :
150*250mm
Spacer types :
Aluminum space/warm edge spacer
Servo motor :
servo motor
Machine type :
Beading Machine,
Usage :
aluminum spacer bar bending, bend aluminum spacer bar into required shape
Automation :
Automatic
Aluminum spacer width :
6-27A
Description

Automatic Spacer Edge Bending Machine for Double Glazing Glass Processing

Overview of fully automatic bar bending machine

Insulating glass is made by 2pcs or more float glasses which filled with desiccant of Argon gas with Aluminum frame.Primary seal(butyl)between insulating glass and Aliminum frame, secondry seal(polysulfide or structure). Insulating glass will be effectively protect radiation when coated Low-E film.

Technical Data of Automatic Aluminum spacer bending machine

Max. bending size

 2000mm*2000mm

Min. bending size

 250mm*180mm

Aluminum spacer width

 6A - 27A
Spacers racks 4 Racks

Spacer size error

 ±0.5mm

Angle error

 ±1°

Processing speed

 < 25s (1000mm*1000mm)

Air supply

 ≥0.65MPa
Voltage 380V50Hz 3P
Total power 2.5KW
Dimension 10500mm*2200mm*2600mm

Detail of Automatic Aluminum spacer bending machine

1.Siemens 1200PLC control system with fast working speed.German siemens plc control system,touch screen interface.

Servo Motor 25s Aluminium Profile Bending Machine For Insulating Glass Processing

2.Automatic Aluminum spacer bending machine have Four or Twelve different spacer size storage units can choose

Servo Motor 25s Aluminium Profile Bending Machine For Insulating Glass Processing

3.Automaticlly cut and feed Aluminum spacers

4.Heavy duty connectors ,convenience and safety for installation and debugging

Servo Motor 25s Aluminium Profile Bending Machine For Insulating Glass Processing

5. Aluminum spacers are available in different specifications and in sizes of 6A-27A.

Servo Motor 25s Aluminium Profile Bending Machine For Insulating Glass Processing

6.Support continuous bending , it automatically avoid spacer -connection while bending and cutting

Servo Motor 25s Aluminium Profile Bending Machine For Insulating Glass Processing

7.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)

Servo Motor 25s Aluminium Profile Bending Machine For Insulating Glass Processing

8.The special machine hand device is used to bend big spacer frame

Servo Motor 25s Aluminium Profile Bending Machine For Insulating Glass Processing

9.USB input function ,it can read the excel data directly

10.Spare parts of all machine have ID code ,convenient for after-sale service

Servo Motor 25s Aluminium Profile Bending Machine For Insulating Glass Processing

Features of Aluminum Spacer Bar Bending Machine

• Siemens 1200 PLC control system with fast working speed

• 4 or 12groups of spacer racks

• Bend aluminum spacer, smooth stainless steel, warm spacer

• Bend spacer frames continuously

• Automatically avoid the pins while bending and cutting

• Automatically cut and feed aluminum spacers

• Aluminum spacers are available in sizes of 6A-27A

• Pause and Reset device for handling equipment failures

• Different bending tools for different sizes of spacers

• USB input function, read the excel format file directly

Optional functions

• Connect to ERP system

• Drill holes

• Printing code

• Printing label sticker

• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools

Servo Motor 25s Aluminium Profile Bending Machine For Insulating Glass Processing

Related Product

Smart Vertical Edge Deleting Machine LJCM2545

Servo Motor 25s Aluminium Profile Bending Machine For Insulating Glass Processing

Main feature

• Two-way glass access

• Automatically measure size

• Automatically distinguish low-e surface

• The head can be rotated 360°

• Safe and full automatic device

• PLC control system, touch screen interface

• Six servos control system

• Edge deletion is adjustable

• Intelligent control system, can recognize batch processing

Technical data

Max. glass processing size 2500*4500mm
Min. glass processing size 400*280mm
Glass thickness 3-15mm
Diameter of grinding wheel 200mm
Conveyor height 500mm
Edge deleting width 10-50mm
Transmission speed 1. 29m/min
Edge deleting speed 2-29m/min
Abrasive wheel width 10/12/15mm
Glass thickness 3 - 15mm
Grinding wheel speed 0~3000r/min
Total air consumption 100L/ min
Air pressure ≥0.8MPa
Total power 3P 380V 50Hz 3.35KW
Dimension Dimensions :9700×2500×3400mm
Total weight 3700KG

Electrical parameters

NAME ORIGIN BRAND
Servo motor Taiwan TAIDA
PLC Taiwan TAIDA
Pneumatic component Taiwan AAIRTAC
Low pressure electricity Germany SIEMENS
Circuit breaker Germany SIEMENS
Sensor switch Korea AUTONICS
Approach switch Korea AUTONICS
Limit switch Taiwan TEND
Connector Germany SIEMENS
Frequency converter France SCHNEIDER
Main Button France SCHNEIDER
Intermediate relay Japan OMRON
