0.9mm Automatic Desiccant Filling Machinery Desiccant Automatic Filling Machine With CE
0.9mm Automatic Desiccant Filling Machinery Desiccant Automatic Filling Machine With CE
0.9mm Automatic Desiccant Filling Machinery Desiccant Automatic Filling Machine With CE
0.9mm Automatic Desiccant Filling Machinery Desiccant Automatic Filling Machine With CE
Specifications
Brand Name :
LIJIANG
Model Number :
LJGZ2020A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30sets/month
Delivery Time :
Within 30 days
Packaging Details :
Wooden box
Production name :
Automatical Molecular Sieve Filling Machine
Faction :
Automatically drilling,filling and sealing
Application :
Double glazing glass making
Filling aluminum frame's maximum size :
2000mm*2000mm
Filling aluminum frame's minimal size :
300mm*250mm
After-sales Service Provided :
Engineers available to service machinery overseas
Molecular sieve diameter needed :
0.5- 0.9 mm
optional :
big barrel
Condition :
New
Description

Automatic Desiccant filling machinery desiccant automatic filling machine with CE

Automated filling machine Adopt Japan ANCHUAN servo control system with stable performance,it can Automatically measure glass size, glue depth and glue speed with linear adjustment, coating glass with silicone,glass corners are full without air bubbles, smooth surface.

Advantage of simens PLC control molecular sieve filling machine

•Adopt Siemens PLC control system automatic desiccant filling machine
•Touch screen interface, simple and visible

•The machine height can be adjusted according to the size of spacer frame
•Automatically loading and replenish molecular sieve
•Double tubes for unloading to increase filling speed
•Filling time can be adjusted
•Automatically drilling, filling and sealing
•Molecular sieve can be 0.5 -0.9mm or 1.0 -1.5mm sizes
•Core parts are imported brands
•Using big plastic barrel, save feeding time and improve efficiency (Optional)
•Protection device for machine head (Optional) •Filling arc frame (Optional)
•Fill large particle molecular sieve

Details of Automatic Desiccant Filling Machine

1.Auto drilling, filling and sealing function

0.9mm Automatic Desiccant Filling Machinery Desiccant Automatic Filling Machine With CE

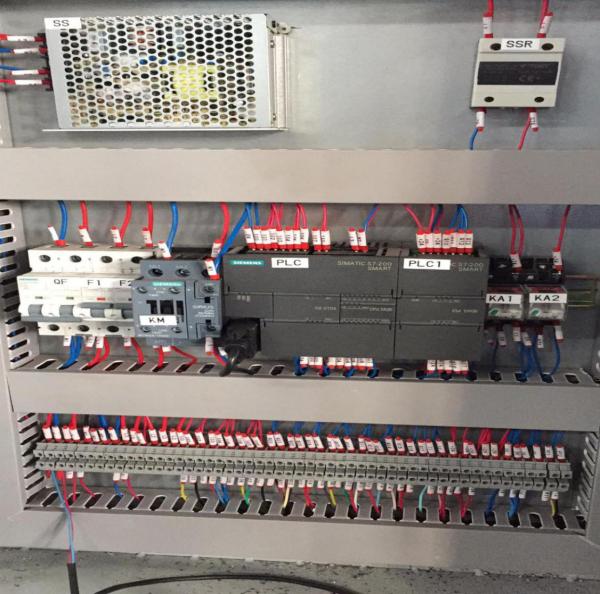

2.Electrical component are all Germany Brand-Siemens.

0.9mm Automatic Desiccant Filling Machinery Desiccant Automatic Filling Machine With CE

3. Protection device for machine head.

0.9mm Automatic Desiccant Filling Machinery Desiccant Automatic Filling Machine With CE

4.Machine height can be adjusted according to the size of spacer frame

0.9mm Automatic Desiccant Filling Machinery Desiccant Automatic Filling Machine With CE

5.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .

0.9mm Automatic Desiccant Filling Machinery Desiccant Automatic Filling Machine With CE

6.Desiccant automatically loading from the Materials bucket.

0.9mm Automatic Desiccant Filling Machinery Desiccant Automatic Filling Machine With CE

Technical parameter of Aluminum Spacer Molecular sieve filling machine

Filling aluminum frame’s maximum size 2500mm*2500mm
Filling aluminum frame’s minimal size 300mm*250mm
Article aluminum specifications 5.5-24mm
Air source ≥0.65MPa
Power supply and power consumption AC220V 50Hz 1.8KW
Molecular sieve diameter needed 0.5-0.9mm
Dimension 1300mm*1100mm*3650mm


0.9mm Automatic Desiccant Filling Machinery Desiccant Automatic Filling Machine With CE

Related products

Vertical Low-E Glass Edge Deletion Machine LJCM2545

0.9mm Automatic Desiccant Filling Machinery Desiccant Automatic Filling Machine With CE

Main feature

• Two-way glass access

• Automatically measure size

• Automatically distinguish low-e surface

• Edge deletion is adjustable

• Safe and full automatic device

• The head can be rotated 360°

• PLC control system, touch screen interface

• Six servos control system

• Intelligent control system, can recognize batch processing

Technical data

Max. glass processing size

2500*4500mm

Min. glass processing size

400*280mm

Glass thickness

3-15mm

Diameter of grinding wheel

200mm

Conveyor height

500mm

Edge deleting width

10-50mm

Transmission speed

1. 29m/min

Edge deleting speed

2-29m/min

Abrasive wheel width

10/12/15mm

Glass thickness

3 - 15mm

Grinding wheel speed

0~3000r/min

Total air consumption

100L/ min

Air pressure

≥0.8MPa

Total power

3P 380V 50Hz 3.35KW

Dimension

Dimensions :9700×2500×3400mm

Total weight

3700KG
