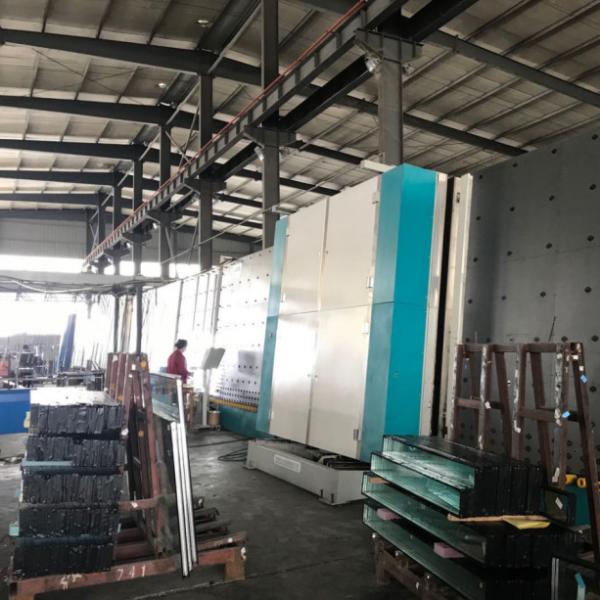

glass production line insulating glass line washing machine production line

double glazing glass machine

1, The frame of the whole machine adopt international pipe, the thickness of pipe shell is above 3mm. We also need to do the aging on the press section in order to clear the welding effect, so it can prevent from the deformation after using or assembled.

The error of finished-produce glass should be within 0.2 mm in the 1 square, the whole piece glass (2.5*3.5)should be within 0.5mm

2, In the washing section, the thickness of stainless steal is 3mm.

3, The brushes are always broken because of the water- permeated ,To prevent the bearing of bottom of the brush broken, we adopt the very famous stainless steal bearing that is the best brand in china(Haerbing bearing)

4,The component PLC we adopt the Omron brand, LOW-voltage apparatus are schneider brand.

5, In order to located the aluminum spacer, we adapt the new structure that can adjust the deep of the glue and there also have the data display.

6,It can produce the steped glass and triple glass, the steped glass we adapt the servo motor,

Glass located Up and down,left and right are all controled by servo motor.

7, The whole size can be controlled to 2580 and exceeding parts can be folded.In this way,it is convenient to pack and ship ,to reduce the fee of transportation and reduce costs because of the high size. Both of sea and inland transportation exist.

8 in last part,we use the overturning table to help customers processing big frame glass.For large glass,we should put it down to transport.The transmission wheel of overturning table adopted balancing weight ,reducing glass transmission resistance and prevent from traces on the glass.

9, All the hydraulic station valves adopt Yuken brand. (Best in china)

10,Pay attention to the whole connection photoelectric (OTTO KNICKS) and the sensor switch (OMRON) 's connection with convenient set of reliable protection.
Routing with elegant appearance and reasonable protection.

Main Parameter
