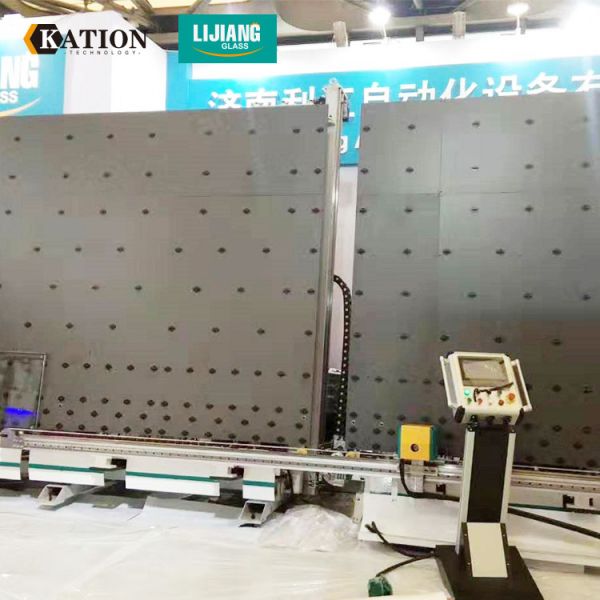

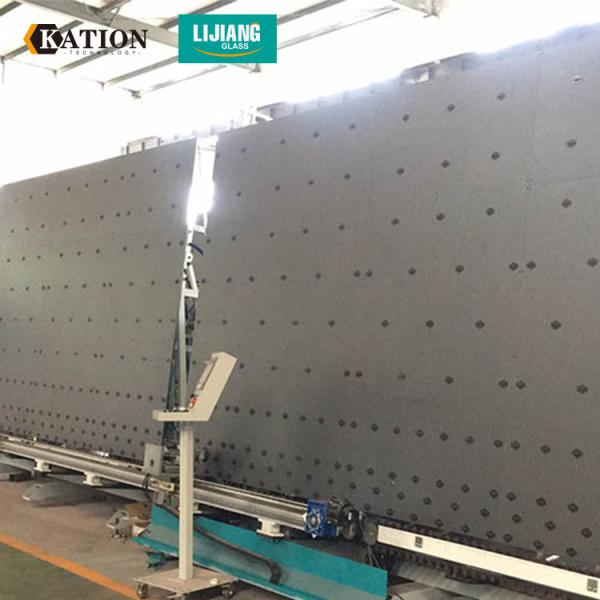

Full Automatic Vertical Insulating Glass Sealing Robot / Insulating Glass Process Machine
Full Automatic Vertical Insulating Glass Sealing Robot / Insulating Glass Process Machine
Full Automatic Vertical Insulating Glass Sealing Robot / Insulating Glass Process Machine
Full Automatic Vertical Insulating Glass Sealing Robot / Insulating Glass Process Machine
Full Automatic Vertical Insulating Glass Sealing Robot / Insulating Glass Process Machine
Full Automatic Vertical Insulating Glass Sealing Robot / Insulating Glass Process Machine
Specifications
Brand Name :
LIJIANG
Model Number :
LJTJ2545
NAME :
Insulating Glass Sealing Robot
Working speed :
5-40m/min
Max.Glass Size :
2500*4000mm
Min. glass size :
300*300mm
Glass thickness :
12-50mm
Description

Main feature

n Can coat many shaped glass(triangle glass,hexagon glass,trapezoidal glass,arc glass,train glass and so on) stepped glass

n Can coat triple glass by one time

n Fast reacting and volume controlled dosing system for IG glass, 2-component sealant

n The glass edge and corner is full without air bubbles, smooth surface, no need to repair the corner

n Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning

n Electric and compressed air switch valve:Ensure electrical automatic switch, stable performance and uniform coating.

n Japan YASKAWA servo motor and CPU,Siemens low-voltage electrical appliances.

Main technical parameter

Max.glass size 2000*2500mm
Min.glass size 300*300mm
Glass thickness 12-56mm
Working speed 5-40m/min
Air pressure 0.5-0.7MPa
Squeeze pressure 32MPa
Overall dimension 8000*1500*2700mm

Main components list

Servo motor Japan Yaskawa
Servo driver Japan Yaskawa
CPU Japan Yaskawa
Low voltage component Siemens
Guideway Taiwan Hiwin
Switching power supply Taiwan MW
Optoelectronic switch Korea Autonics
Pneumatic component Taiwan Airtac
Touch screen Taiwan Wenview
Travel switch Taiwan Tiande
