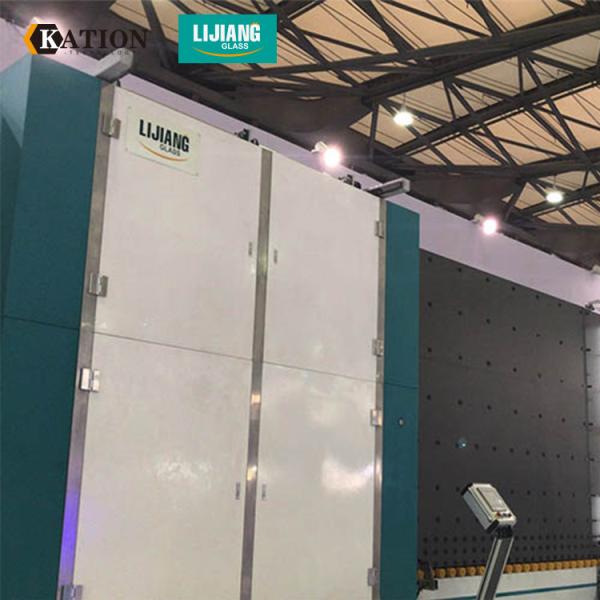

Vertical Flat Press Insulating Glass Production Line Hierarchical Type Washing System
Vertical Flat Press Insulating Glass Production Line Hierarchical Type Washing System
Vertical Flat Press Insulating Glass Production Line Hierarchical Type Washing System
Vertical Flat Press Insulating Glass Production Line Hierarchical Type Washing System
Specifications
Brand Name :
LIJIANG GLASS
Model Number :
LJBZ2535
Certification :
CE
Place of Origin :
JINAN,CHINA
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
40 sets per year
Delivery Time :
50 days
Packaging Details :
Container
Name :
Insulating Glass Production Line
Max.glass size :
2500*3500/2200*3000mm
Min.glass size :
300*450mm
Glass thickness :
3-12mm
Insulating glass thickness :
40mm
Glass washing speed :
2-10m/min
Glass conveyor speed :
45m/min
Washing brushes :
3 pairs
Description

Vertical Flat Press Insulating Glass Production Line Hierarchical Type Washing System

Insulating Glass Production Line Main feature

· Can wash on-line&off-line glass

· Hierarchical type washing system

· Water tank automatic temperature control, water replenishing system

· European silencer system&stainless steel drying system

· Intelligent batch-type energy saving systemn Embedded subdued light inspection method

· Aluminum frame assembly separate part structure

· Digital display&sealant depth adjustment device

· Adjustable matrix separating pressing system

· Automatic outside rotary glass positioning system

· Aviation plug cable connect way

· Triple IG , shaped IG automatic assembly and positioning system

· Universal wheel in tilting table has balance weight device

· Servo control stepped IG system, modularity function, superposition function

· Automatic control of second press for over length glass

· Static automatic release function

Insulating Glass Production Line APPLICATION

As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.

Insulating Glass Production Line Parameters:

Max.glass size: 2500*3500/2200*3000mm
Min.glass size 300*450mm
Glass thickness 3-12mm
Insulating glass thickness 40mm
Glass washing speed 2-10m/min
Glass conveyor speed: 45m/min
Washing brushes 3 pairs
Water supply: Water consumption:0.5t/h conductivity:≤50μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P380V 50HZ 25KW
Dimension 18500*3500*3600/18350*2600*3250mm

Insulating Glass Production Line Details

Vertical Flat Press Insulating Glass Production Line Hierarchical Type Washing System
