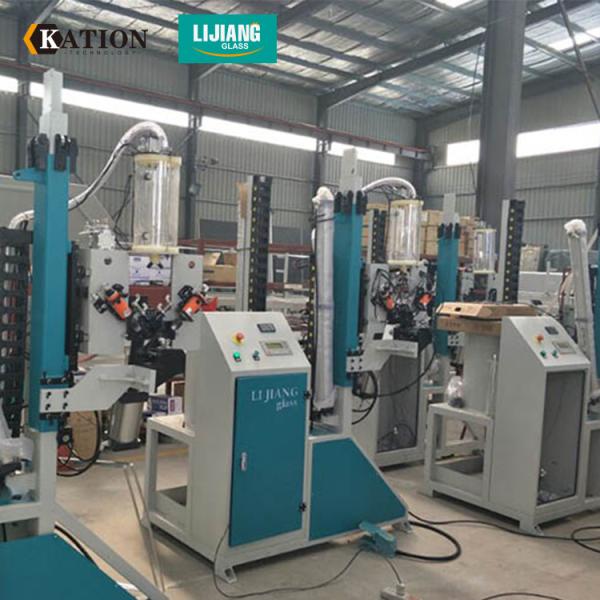

Auto Glazing Desiccant Filling Machine / Automatic Aluminum Desiccant Filling Machine
Auto Glazing Desiccant Filling Machine / Automatic Aluminum Desiccant Filling Machine
Auto Glazing Desiccant Filling Machine / Automatic Aluminum Desiccant Filling Machine
Auto Glazing Desiccant Filling Machine / Automatic Aluminum Desiccant Filling Machine
Auto Glazing Desiccant Filling Machine / Automatic Aluminum Desiccant Filling Machine
Auto Glazing Desiccant Filling Machine / Automatic Aluminum Desiccant Filling Machine
Specifications
Brand Name :
LIJIANG
Model Number :
LJTJ2540
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiation
Production name :
Automatic desiccant filling machine
barrel :
big barrel
After-sales Service Provided :
Engineers available to service machinery overseas
Filling aluminum frame's maximum size :
2000mm*2000mm
Filling aluminum frame's minimal size :
300mm*250mm
Molecular sieve diameter needed :
0.5- 0.9 mm
Description

auto glazing desiccant filling machine for double glass sale/Automatic aluminum desiccant filling machine

Main features:
1. The filling height of head can be adjusted according to the size of spacer frame.
2. Filling time can be adjusted.
3. Desiccant auto loading and replenish.
4. Auto drilling, filling and sealing function.
5. Germany Siemens PLC control system.
6. Touching screen interface, simple and visible.
7. Can fill arc Arc-shaped aluminum frame (New function)

Technical data
Filling aluminum frame’s maximum size
2500mm*2500mm
Filling aluminum frame’s minimal size
300mm*250mm
Aluminum specifications
5.5-24mm
Air source
≥0.65MPa
Power supply and power consumption
AC220V 50Hz 1KW
Molecular sieve diameter needed
0.5-0.9mm
Dimension
1300mm*1100mm*3650mm
1.Protection device for machine head.
2.Electrical component are all Germany Brand-Siemens.

3.Electrical component are all Germany Brand-Siemens.

4.Machine height can be adjusted according to the size of spacer frame.

5.Desiccant automatically loading from the Materials bucket.

(When the material was used up the sensor will alarming, desiccant will automatically loading )

6.Auto drilling, filling and sealing function

7.Touching screen interface, simple and visible;Filling time can be adjusted according to the size of spacer frame in the touch screen

8.All spare parts have ID Number for offering the convenience in after sales service.

9.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .

10. This model has a big barrel to storage desiccant ,no need to put desiccant frequently,increasing efficiency.

11. It has a vacuum pump to load desiccant,more quickly and improving efficiency.
