Jumbo Size 3300*7000 Mm Insulating Glass Production Line With Argon Filled
Jumbo Size 3300*7000 Mm Insulating Glass Production Line With Argon Filled
Jumbo Size 3300*7000 Mm Insulating Glass Production Line With Argon Filled
Jumbo Size 3300*7000 Mm Insulating Glass Production Line With Argon Filled
Specifications
Brand Name :
Lijiang
Model Number :
LJBZ3370
Certification :
CE ISO
Place of Origin :
Jinan
MOQ :
1 SET
Price :
250000
Payment Terms :
L/C, T/T
Supply Ability :
5 SETS/MONTH
Delivery Time :
50 DAYS
Packaging Details :
Container
Product name :
IG line
Voltage :
380V 50Hz(Customizable)
Aftersale :
yes
Automation :
Automatic
Machine type :
Insulating Glass Production Line
Color :
Optional
Function :
Process
Warranty :
1 Year
Max bending size :
3300x7000mm
Usage :
insulating glass making
Description

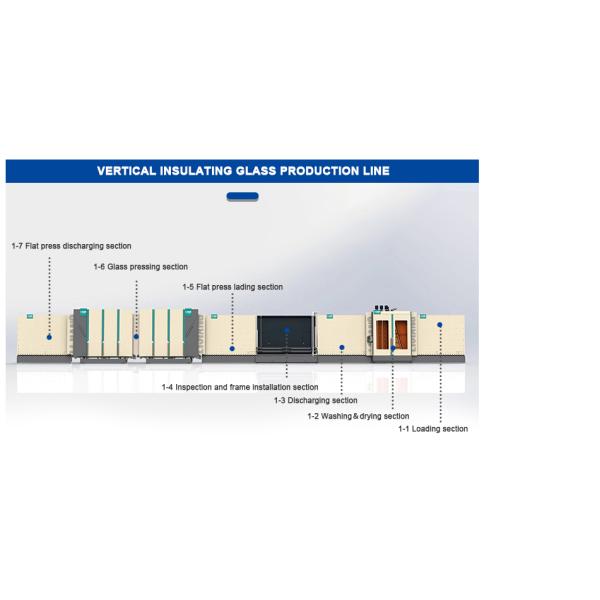

Vertical Insulating Glass Production Line LJBZ3370

Jumbo Size 3300*7000 Mm Insulating Glass Production Line With Argon Filled

01 transfer section;
02 washing machine;
03 discharge section;
04 inspection and installation section;
05 transfer section;
06 pressing and filling section;
07 discharge section.
* PLC control system, touch screen interface
* Using Siemens servo motors
* Applicable to produce double glass, triple glass
Optional Functions:
•Step glass with optional edges
•Shaped glass
•Filling argon gas automatically
•Air-floating technology to transfer glass
•PLC control system, touch screen interface
•Using Siemens servo motors
•Applicable to produce double glass, triple glass To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.
Jumbo Size 3300*7000 Mm Insulating Glass Production Line With Argon Filled
Parameter:
Item.
Spec.
Max. glass size
3300mm*7000mm
Min. glass size
280mm*400mm
Glass thickness
3-15mm
Insulating glass thickness
50mm / 60mm
Glass washing speed
2-10m/min
Glass conveyor speed
45m/min
Washing brushes
3 pairs
Water supply
Water consumption:0.5t/h conductivity:40μs/cm
Air supply
Flow: 0.8m/min
Air pressure
≥0.8MPa
Total power
3P 380V 50HZ 40KW
Weight
6500kgs
