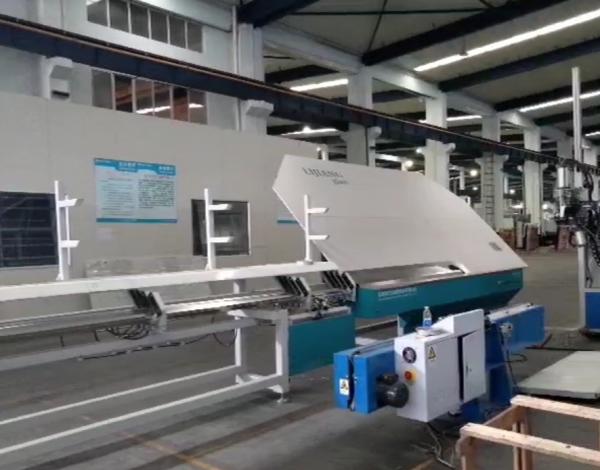

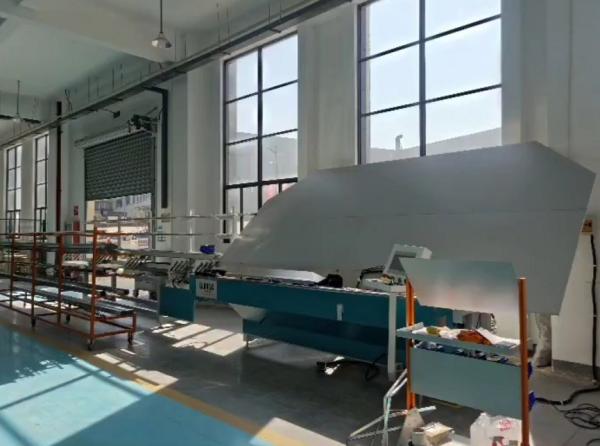

Automatically PLC Controlled Aluminum Spacer Bars Cutting And Bending Machine

l 1*1m spacer frame was bend w 20s.

The error of spacer frame angle is within withib 10 um ,1mm=100 um

Size error 1mm

Shaped

l Can bend aluminum spacer /technoform /Alupro /thermix/

l Spacer automatically connect and cut.

l Machine automatically stop when the spacer use up.

l Support continuous bending , automatically avoid spacer connection while bending and cutting

l Automatically connect the spacer -connector

l Remote control function

l USB input function ,it can read the excel data directly

l Spare parts of all machine have ID code ,convenient for after-sale service

l Heavy duty connectors ,convenience and safety for installation and debugging

l Magnetic valve use Taiwan Airtac

l German Siemens plc control systerm

l Japan Fuji servo control system

l 12 storage spacer units (option)

l Swisspacer/ Stainless Steel /Allmetal Stainless Steel /option)

(Stainless steel and warm edge spacer can not exist at one time )

l Drill hole for gas filling(option)

l Spacer inkjet printing ,various color is available for company logo or production date(option)

l Laber printing (option)

l Scanner scan two-dimension code ,bar code (option)

l Separate Pressing Wheel for arc frame, more accurate than the bending tool

Especially for Hexagon and Octagon frame (optional )

l ERP (optional)

Remark : Bending tool

*For rectangle frame there have three size (6A/9A/12A)was complimentary

Other size need pay extra 42$/per size

* For Circle ,Hexagon and Octagon frame , 300$/per size

Main features of the automatic spacer bending machine :

• Siemens 1200 PLC control system with fast working speed

• 4 groups of storages (2 or 12 groups of storages can be optional)

• Automatically cut and feed aluminum spacers

• Automatically avoid the pins while bending and cutting

• Bend spacer frames continuously

• Aluminum spacers are available in sizes of 6A-27A

• Different bending tools for different sizes of spacers

• Pause and Reset device for handling equipment failures

• Bend aluminum spacer, smooth stainless steel, warm spacer

• Connect to ERP system (Optional)

• USB input function, read the excel format file directly

• Automatically drill holes for filling argon gas (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)

• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)

Technical data of spacer bending machine :

Electrical parameters of spacer bender machine :
