0.5-0.9mm Molecular Filler Automated Glass Dryer Machine
0.5-0.9mm Molecular Filler Automated Glass Dryer Machine
0.5-0.9mm Molecular Filler Automated Glass Dryer Machine
0.5-0.9mm Molecular Filler Automated Glass Dryer Machine
0.5-0.9mm Molecular Filler Automated Glass Dryer Machine
0.5-0.9mm Molecular Filler Automated Glass Dryer Machine
0.5-0.9mm Molecular Filler Automated Glass Dryer Machine
0.5-0.9mm Molecular Filler Automated Glass Dryer Machine
0.5-0.9mm Molecular Filler Automated Glass Dryer Machine
0.5-0.9mm Molecular Filler Automated Glass Dryer Machine
Specifications
Brand Name :
Jinan Lijiang Glass
Model Number :
LJGZ2020 Automatic Desiccant Filling Machine
Certification :
CE & ISO9000
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
Negotiated Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 sets per month
Delivery Time :
5-8 working days
Packaging Details :
Wooden Cases Package
Dimension(L*W*H) :
1300mm*1100mm*3600mm
Max.Glass Size :
2500*2500mm
Min glass size :
150-300mm
Machinery size :
1600*1300*3600mm
Aluminum spacer size :
6A-27A
Weight :
700Kgs
Air pressure :
0.65mpa
Description
Insulated Glass Automatic Molecular Sieve Filling Machine for Aluminum Spacer Desiccant Filling

APPLICATION

The machine can automatically achieve actions of drilling holes automatically in the insulating glass spacing frames, filling desiccant and sealant. The control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. The machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.

Main feature

n The filling height of can be adjusted according to the size of spacer frame

n Filling time can be adjusted

n Desiccant auto loading and replenish

n Auto drilling, filling and sealing function

n Germany Siemens PLC control system

n Touching screen interface, simple and visible

n Adding glue way is safe and easy

n Machine can fill the arc frame.(optional function)

n Can fill Molecular sieve diameter 1.0mm-1.5mm(optional function)

0.5-0.9mm Molecular Filler Automated Glass Dryer Machine

Advantages & Features
0.5-0.9mm Molecular Filler Automated Glass Dryer Machine
Benefits & Advantages
1.The machine height of can be adjusted according to the size of spacer frame 2.The machine time could be adjusted 3.The machine adopts auto loading and replenish 4.The machine adopts auto drilling, filling and sealing function 5.It use Germany Siemens PLC control system 6.The touching screen interface, simple and visible 8.It adopts vacuum pump loading device ,increase the loading speed 9.The desiccant filling machine could use big bucket desiccant, save desiccant refill time, improve the work efficiency.

The Unique ID Code Number
All the electrical wires of the machine parts, have the unique ID code number, it could match with specification, also it will be make it easy for the communication with customers in the after sales service on furture.

The Touching Screen Interface
The touching screen interface, which the parts of machine, is simple and visible; and also, the filling time could be adjusted according to the size of spacer frame in the touch screen.

The Materials Bucket
The desiccant filling automatically loading from the materials bucket. (When the material was used up the sensor will alarming, desiccant will automatically loading.)

The Electrical Component
The electrical component are all Germany Brand-Siemens, which is adopt internationally renowned brands to ensure the stability of the equipment.
Main Technical Parameter
Item.
Spec.
filling aluminum frame max size
2000mm*2000mm
filling aluminum frame min size
300mm*250mm
molecular sieve diameter needed
0.5-0.9mm
Dimension
1300mm*1100mm*3650mm
Air source
≥0.65MPa
Total power
220V 50Hz 1.5Kw
Name
Brand
PLC
Germany SIEMENS
Triplet
TAIWAN AIRTAC
Low voltage electrical apparatus
Germany SIEMENS
Solenoid valve
TAIWAN AIRTAC
Sensor
Korea AUTONICS
Gas driller
Taiwan BOA
Guide
Taiwan TBI
Switch power
Taiwan TEND

LJTB03 Butyl extruder machine

0.5-0.9mm Molecular Filler Automated Glass Dryer Machine

0.5-0.9mm Molecular Filler Automated Glass Dryer Machine

Main feature

n PLC control system, touch screen interface.

n Frequency control system

n Abroad technology, pneumatic and hydraulic supercharging system.

n Automatic centering and clamping structure.

n Separate extruder head structure.

n Automatic butyl volume display function.

n Circular arc butyl sealing structure.

n Extruder head height adjustment structure

n Preheating function

n Butyl cylinder swing mechanism

n Important control parts adopt imported brand.

Main technical parameter

Squeeze pressure 10-14MPa
Temperature 110-140ºC
Aluminum spacer width 6-24mm
Speed 0-27m/min
Diameter of butyl cylinder 190mm
Air supply Flow:0.4m/min
Air pressure ≥ 0.8MPa
Total power 220V 50HZ 2.5KW
Dimension 3000*620*1102mm

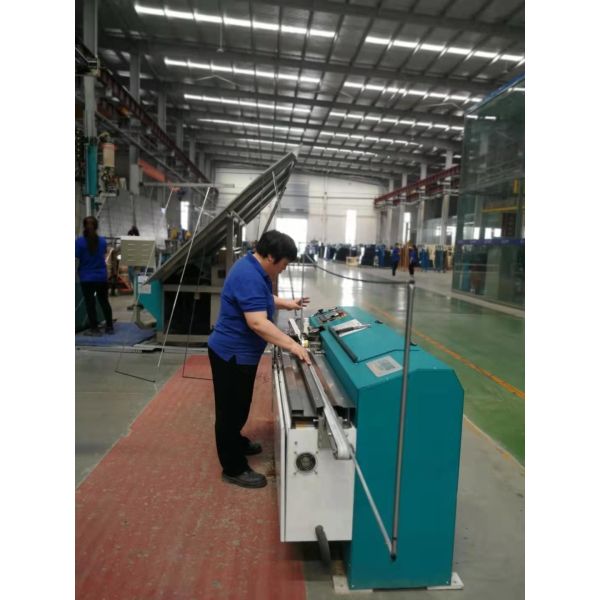

Spacer bending machine

0.5-0.9mm Molecular Filler Automated Glass Dryer Machine

0.5-0.9mm Molecular Filler Automated Glass Dryer Machine0.5-0.9mm Molecular Filler Automated Glass Dryer Machine

l 1*1m spacer frame was bend around 17s.

The error of spacer frame angle is within 0.1mm.

l Can bend aluminum spacer /technoform /Alupro /thermix/

l Spacer automatically connect and cut.

l Machine automatically stop when the spacer use up.

l Support continuous bending , automatically avoid spacer connection while bending and cutting

l Automatically connect the spacer -connector

l Remote control function

l USB input function ,it can read the excel data directly

l Spare parts of all machine have ID code ,convenient for after-sale service

l Heavy duty connectors ,convenience and safety for installation and debugging

l Magnetic valve use Taiwan Airtac

l German Siemens plc control systerm

l Japan Fuji servo control system

l 12 storage spacer units (option)

l Swisspacer/ Stainless Steel /Allmetal Stainless Steel /option)

(Stainless steel and warm edge spacer can not exist at one time )

l Drill hole for gas filling(option)

l Spacer inkjet printing ,various color is available for company logo or production date(option)

l Laber printing (option)

l Scanner scan two-dimension code ,bar code (option)

l Separate Pressing Wheel for arc frame, more accurate than the bending tool

Especially for Hexagon and Octagon frame (optional )

l ERP (optional)

Low-e Film deleting machine

0.5-0.9mm Molecular Filler Automated Glass Dryer Machine

APPLICATION

This equipment is specialized for low-e glass deleting edge with vertical structure and convenient production line connection.Transmission adopts imported servo control system, accurate positioning and smooth operation. High quality grinding wheels are durable and can produce neat and beautiful grinding crack. Distance can be set among 10 ~ 150 mm arbitrarily.

Main feature

1.Two-way glass access

2.Auto measure the size and the thickness

3.Auto distinguish coating side of low-e glass(optional)

4.Auto-modified function

5.The pressure of edge deleting is stable and adjustable

6.Safety protection device auto-dedusting function

7.PLC control system,touch screen interface

8.Six servo control systems

9.Control system intelligently memorize batch processing function

Main technical parameter

0.5-0.9mm Molecular Filler Automated Glass Dryer Machine

Transmission speed 2~29m/min
Edge finish speed 2~29m/min
Glass thickness 3~15mm
Diameter of grinding wheel 200mm
Width of grinding wheel 10/12/15mm
Grinding wheel speed 0~3000r/min
Min.Glass 400×400mm
Max. Glass 2500×4000mm
Conveyor height 500mm
Total air consumption 100L/ min
Total weight 3700KG
Dimensions 9700×2500×3400mm

0.5-0.9mm Molecular Filler Automated Glass Dryer Machine0.5-0.9mm Molecular Filler Automated Glass Dryer Machine
