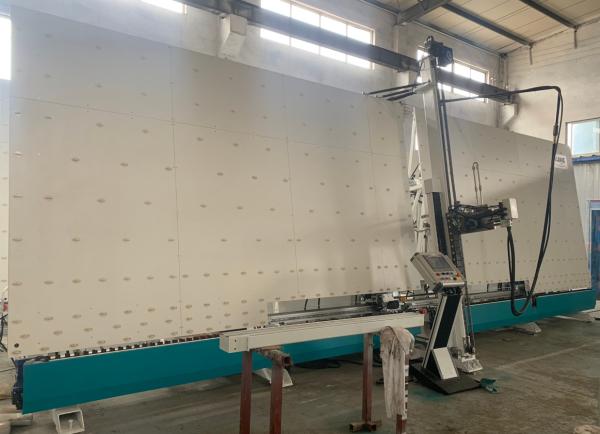

8 Servo Motors Automatic Insulating Glass Sealing Robot

►Machine Description of Insulating Glass Sealing Robot

This type of machine is a full automatic and high-efficienc sealing robot for insulating glass processing. Automatically measure glass size, glue depth and glue speed with linear adjustment. Single-function parts are equipped with manual functions, easy adjustment.Can coating more than 8 kinds of shaped glass,include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc.

► Application of Insulating Glass Sealing machine

Min & Max glass sizes can be optional

Adopt 8 servo motors

Adopt Japan ANCHUAN servo control system with stable performance

Automatically measure glass size, glue depth and glue speed with linear adjustment

Adopt timing belt to keep smooth convey with accurate position

Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working

The glass corners are full without air bubbles, smooth surface, no need to

Full automatic and high-efficiency machine

New scraper design, especially for making train IG with very even sides and corners, without any bubbles.

Automatically repair glass corners with beautiful surface

Smooth convey without scratch and pollution

Single-function parts are equipped with manual functions, easy adjustment

Shaped IG units (Optional)

Stepped IG units with four sides (Optional)

Double and Triple IG units

►Main technical parameter of insulated glass sealing line

►►►Sealing head showing

►►►Electrical parts Showing

The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and revering mechanism and rotating.

The main electrical components are adopted Siemens, SMC and so on famous spares to maintain more stable performance.

►►►Tow pump syetem( optional )

Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.
