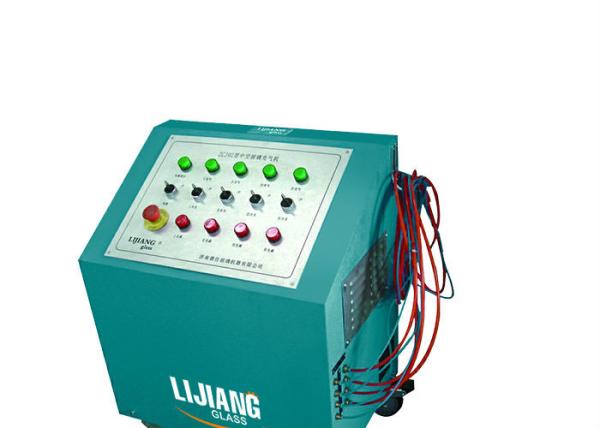

Argon gas filling machine

Argon gas filling machine is used to filling argon gas into double glazing glass units.

Significance of argon filling in double glazing glass production line

The significance of completing the argon filling of the insulating glass in the insulating glass production line (the argon filling operation is conducted at the pressure outlet of the laminating plate of the insulating glass production line, and the insulating glass enters the sealant production line after the argon filling operation to apply structural glue to the insulating glass) is that the argon filling process of the insulating glass is completed once in the laminating and sealant production line of the insulating glass. This process is relatively simple and efficient.

Features of using the argon gas filling machine in the double glazing glass production line

It is a precise way to inflate argon in the production line of insulating glass. This precise inflation method has a relatively fast inflation speed, greatly reducing the argon waste, making the cost of filling argon in the hollow glass very low. In the whole cost composition of the hollow glass, the cost of filling argon can almost be ignored, which is an efficient and economical inflation method.

Equipment function:

The equipment is specially used for filling inert gas in hollow glass, automatic inflation, automatic detection, safe and efficient.

Main Features

1.Four pieces IGU can be gas filled at the same time within 20s (1m*1m glass).

2.Pressure alarm device:when the gas filling is up to adjusted value,it will alarm and stop automatically.

3.The filling process can display on the touch screen.

4.Gas content setting: the customer can set the argon content in the IGUs according to his own needs.

5.The whole filling process and argon gas content can be displayed on the screen, and the argon gas content can be observed in real time.

Main technical parameter

Relative Machines:

1.Aluminum Spacer Bending Equipment

2.Automatic Desiccant Filler

3.Insulating Glass Sealing Robot

4.Glass Cutting Table

5.Custom Glass Edging Machine

Product Description :

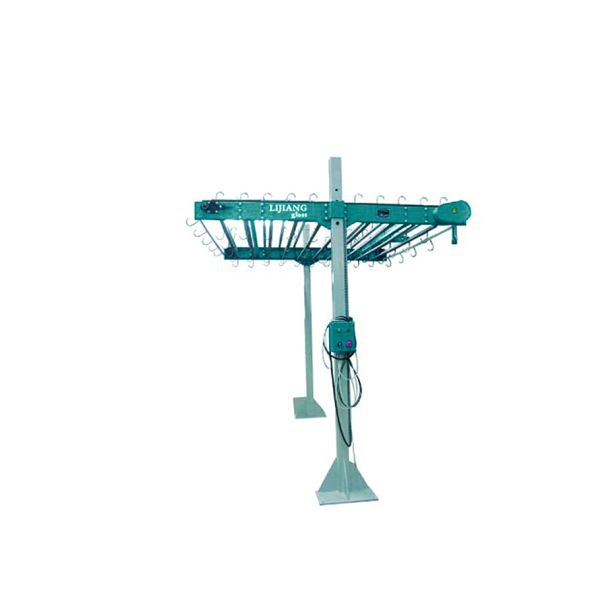

Aluminum Frame Transfer Machine

1. Spacer frame transport

2. Easy operating

3. Simple and flexible

4. Connect with insulating glass line

5. Connect with automatic butyl extruder machine

Technical data:

Semi-automatic Spacer Frame Molecular Sieve Desiccant Filling Machine for Insulating Glass Hollow Glass Double Glazed Processing

Product Description:

Manual molecular sieve filling machine can effectively seal the molecular sieve for the aluminum spacer frame to keep the aluminum spacer frame dry and avoid moisture absorption.

Advantage :

•PLC control system, touch screen interface

•Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust

•The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

•Fast preheat, improve work efficiency

•with preheating function

•With exhaust inflatable function, improve the quality of sealing and save time for plastic

•Quickly coating speed,can up to 47m/min

•Saving the amount of glue

Technical Parameter:

Product Detail:

Relative Machines:

1.Aluminum Spacer Bending Equipment

2.Automatic Desiccant Filler

3.Insulating Glass Sealing Robot

4.Glass Cutting Table

5.Custom Glass Edging Machine

Spacer Trip Cutting Machine

Product Description

Main Features:

• It is used for cutting aluminum strip.

• Allowed to cut many spacers, keep high efficiency.

Technical data:
