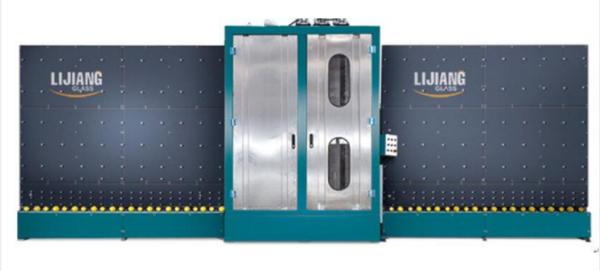

2-15m/Min Automatic Vertical Glass Washing Machine For Glass Cleaning
2-15m/Min Automatic Vertical Glass Washing Machine For Glass Cleaning
2-15m/Min Automatic Vertical Glass Washing Machine For Glass Cleaning
2-15m/Min Automatic Vertical Glass Washing Machine For Glass Cleaning
2-15m/Min Automatic Vertical Glass Washing Machine For Glass Cleaning
2-15m/Min Automatic Vertical Glass Washing Machine For Glass Cleaning
2-15m/Min Automatic Vertical Glass Washing Machine For Glass Cleaning
2-15m/Min Automatic Vertical Glass Washing Machine For Glass Cleaning
2-15m/Min Automatic Vertical Glass Washing Machine For Glass Cleaning
2-15m/Min Automatic Vertical Glass Washing Machine For Glass Cleaning
2-15m/Min Automatic Vertical Glass Washing Machine For Glass Cleaning
2-15m/Min Automatic Vertical Glass Washing Machine For Glass Cleaning
2-15m/Min Automatic Vertical Glass Washing Machine For Glass Cleaning
2-15m/Min Automatic Vertical Glass Washing Machine For Glass Cleaning
2-15m/Min Automatic Vertical Glass Washing Machine For Glass Cleaning
2-15m/Min Automatic Vertical Glass Washing Machine For Glass Cleaning
Specifications
Brand Name :
Jinan Lijiang Glass Machinery
Model Number :
LJWBQJ2500
Certification :
CE & ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
Discussible
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 sets per month
Delivery Time :
5-8 working days
Packaging Details :
Wooden Cases Package
Voltage :
380V 50HZ
Weight :
2500kg
Dimension(l*w*h) :
5800x1500x2700mm
After-sales service provided :
Engineers available to service machinery overseas
Condition :
New
Glass thickness :
3-15mm
Power(w) :
15kw
Warranty :
1 year
Description
1600mm 1800mm Vertical Insulating Glass Washing and Drying Machine with Vertical Combining Table Combining Fragments Function
Products Description
Jinn LIJIANG LJBQX2535 Insulating Glass Washing MachineLJBQX2535 insulating glass washing machine can wash max glass of 2500mm*3500mm, more large size and less size can be optional. - Self-Diagnosis system with touch screen on computer. - Stainless steel washer with 8 ( 6 ) brushes, soft brushes from MONFORTS of Germany, hard brushes automatically open when Low-E glass input. - Rotate speed of brush frequency control. (optional) - Stainless steel air knife is automatically adjustable according to glass thickness, Max thickness to 19mm - High speed cleaning ( max 14m/min), Low noise ( max 70dB), high availability working. ( 25 second /unit) - Automatic detection of Low-E glass and alarm for coating in reverse. (optional) - Structure stepped and three-layer I.G. unit available. (optional) - Precision of plate press: ±0.3mm
Advantages & Features

Benefits & Advantages
* In the washing machine ,there three pairs soft brushes all can wash low-e glass, four pairs of water spray. * The material in the washing and drying section all made by stainless steel. * The main power consumption is mostly appear in the washing and drying section of the IG line. * The air knife is float design , it always keep the right and suitable distance between the glass and air knife in the press and design section * The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transferred. No mater the glass size is big or small , it all guarantee the glass pass through smoothly. * The axle and bearing of brushes are stainless steel , that all keep the machine can washing well and live for a long time. * The who drying machine use the sound insulation design. can reduce the noise.

3 pairs of 0.1mm soft brushes
It has 3 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for Low-E glass.

New design of air knife
The whole washing machine uses a new design of air knife to washing and drying glass, which make the distance between the glass and the air knife in a stable value, to keep the best drying effect.

The water heating system
As different countries have different water quality, in order to ensure that the glass is washes clearly enough,adoptingair heating system, to use soft water to wash glass. What’s more, using water filter system to make water recycling, save water and keep the water clear.

The anti-noise system
Using Europe's advanced anti-noise system to create a good working environment for employees. The noise can be controlled below 90 decibels by using nylon gear and sponges.
Main Technical Parameter
Item.
Spec.
Max washing size
2000mm*2500mm
Min washing size
450mm*300mm
Glass washing speed
2-10m/min
Glass conveyor speed
45m/min
Washing brushes
3 pairs of soft brushes with 0.1mm hair
Water supply
Water consumption:0.5t/h conductivity:40μs/cm
Air supply
Flow: 0.8m/min
Air pressure
≥0.8MPa
Total power
18kw
Height
3100mm

About Us
03:36
Technician TeamJinan LIJIANG Glass, has own technician team, IG line and automatic sealing robot technician team have 6 experts which all have more than 15 years+ glass machine producing experience. Aluminum spacer bending and desiccant filling machine technician team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years, Service Team: Jinan LIJIANG Glass, has the own chinese domestic team and oversea service team. The whole team was included by 15 chinese engineers who worked in glass machine filed more than 20 years and 5 oversea engineers, two of them from india and others from south America and midle east. 24 hours online service and local engineer available, guarantee customers got timely service and solution.
