Aluminum Strip Bending Machine For Insulating Glass Spacer Printing Function
Aluminum Strip Bending Machine For Insulating Glass Spacer Printing Function
Aluminum Strip Bending Machine For Insulating Glass Spacer Printing Function
Aluminum Strip Bending Machine For Insulating Glass Spacer Printing Function
Aluminum Strip Bending Machine For Insulating Glass Spacer Printing Function
Aluminum Strip Bending Machine For Insulating Glass Spacer Printing Function
Aluminum Strip Bending Machine For Insulating Glass Spacer Printing Function
Aluminum Strip Bending Machine For Insulating Glass Spacer Printing Function
Specifications
Brand Name :
LIijiang Glass
Model Number :
2020A
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 30000.00 -35000.00
Payment Terms :
L/C, T/T
Supply Ability :
50sets/month
Delivery Time :
45 days
Packaging Details :
Container/wooden box
Voltage :
380V 50HZ
Condition :
New
Dimension(l*w*h) :
10500mm*2200mm*2500m
After-sales service provided :
Engineers available to service machinery overseas
Weight :
1000KG
Power(w) :
3KW
Warranty :
1Year
Name :
aluminum spacer machinery
Description

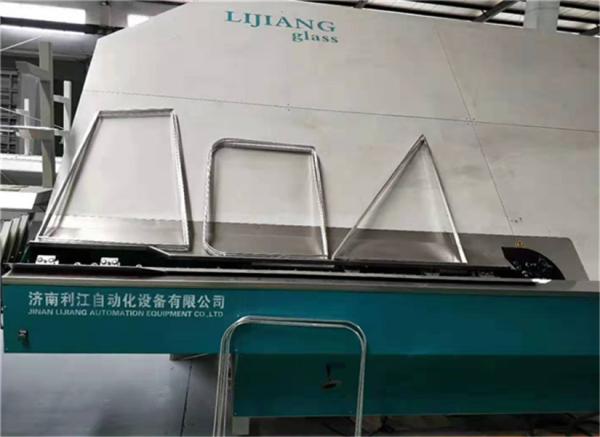

Aluminum strip bending machine for insulating glass with Spacer printing function

1.Application

insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.
Aluminum Strip Bending Machine For Insulating Glass Spacer Printing Function

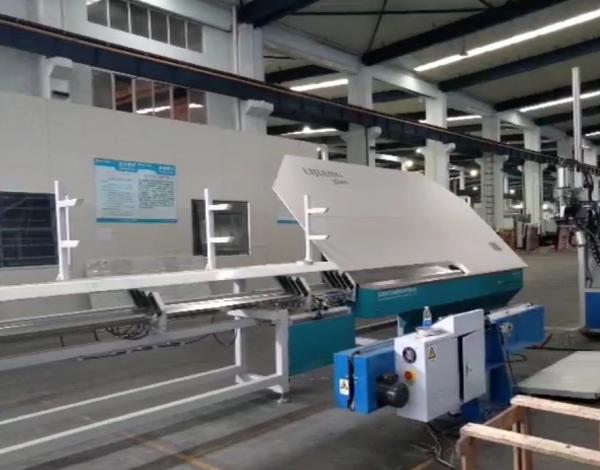

2. Equipment details

Adopt Siemens PLC control system

There are 4 Siemens servo

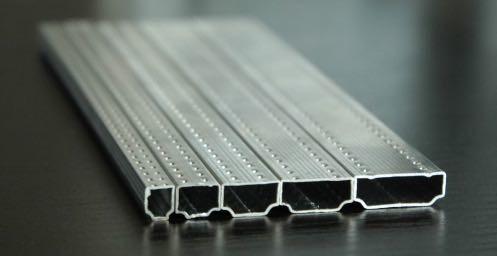

Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens servo to change different racks. Automatically cut and feed aluminum spacers Bend shaped spacer frames continuously Automatically avoid the connecting corner while bending and cutting
Aluminum Strip Bending Machine For Insulating Glass Spacer Printing Function
Item. Spec.
Max.bending size 2000mm*2000mm
Min.bending size 250mm*200mm
Aluminum spacer width 6A-27A
Dimension error ±0.5mm
Angle error ±1
Air supply ≥0.65Mpa
Total power AC 220V/380V 50HZ 2.5KW

Aluminum Strip Bending Machine For Insulating Glass Spacer Printing FunctionAluminum Strip Bending Machine For Insulating Glass Spacer Printing FunctionAluminum Strip Bending Machine For Insulating Glass Spacer Printing FunctionAluminum Strip Bending Machine For Insulating Glass Spacer Printing Function
