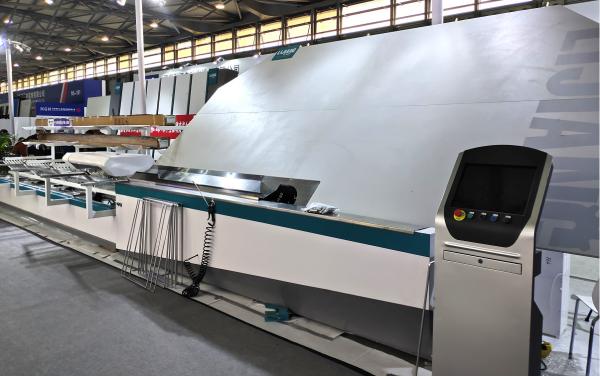

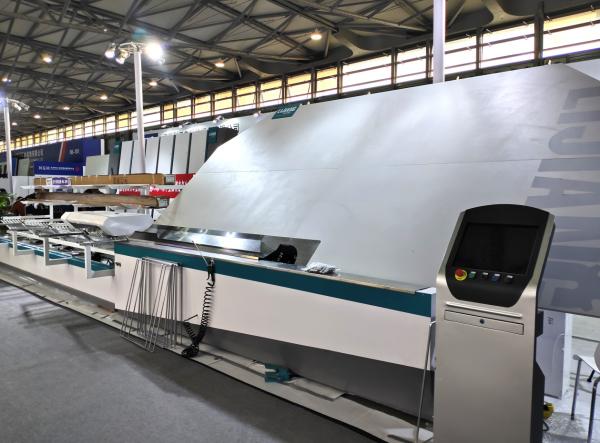

Automatic Insulating Glass Spacer Frame Spacer Bending Machine Bar Bending Machine

l 1*1m spacer frame was bend w 20s.

The error of spacer frame angle is within withib 10 um ,1mm=100 um

Size error 1mm

Shaped

l Can bend aluminum spacer /technoform /Alupro /thermix/

l Spacer automatically connect and cut.

l Machine automatically stop when the spacer use up.

l Support continuous bending , automatically avoid spacer connection while bending and cutting

l Automatically connect the spacer -connector

l Remote control function

l USB input function ,it can read the excel data directly

l Spare parts of all machine have ID code ,convenient for after-sale service

l Heavy duty connectors ,convenience and safety for installation and debugging

l Magnetic valve use Taiwan Airtac

l German Siemens plc control systerm

l Japan Fuji servo control system

l 12 storage spacer units (option)

l Swisspacer/ Stainless Steel /Allmetal Stainless Steel /option)

(Stainless steel and warm edge spacer can not exist at one time )

l Drill hole for gas filling(option)

l Spacer inkjet printing ,various color is available for company logo or production date(option)

l Laber printing (option)

l Scanner scan two-dimension code ,bar code (option)

l Separate Pressing Wheel for arc frame, more accurate than the bending tool

Especially for Hexagon and Octagon frame (optional )

l ERP (optional)

Remark : Bending tool

*For rectangle frame there have three size (6A/9A/12A)was complimentary

Other size need pay extra 42$/per size

* For Circle ,Hexagon and Octagon frame , 300$/per size

Main technical parameter

Spacer Bending machine main components

Main feature of spacer bending machine

• Siemens 1200 PLC control system with fast working speed

• 4 groups of storages (2 or 12 groups of storages can be optional)

• Automatically cut and feed aluminum spacers

• Automatically avoid the pins while bending and cutting

• Bend spacer frames continuously

• Aluminum spacers are available in sizes of 6A-27A

• Different bending tools for different sizes of spacers

• Pause and Reset device for handling equipment failures

• Bend aluminum spacer, smooth stainless steel, warm spacer

• Connect to ERP system (Optional)

• USB input function, read the excel format file directly

• Automatically drill holes for filling argon gas (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)

• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)

Technical data of automatic spacer bending machine

Detail of Automatic spacer bending machine

1.German siemens plc control system,touch screen interface.Siemens 1200PLC control system with fast working speed.

2.Automaticlly cut and feed Aluminum spacers

3.Automatic Aluminum spacer bending machine have Four or Twelve different spacer size storage units can choose

4. Aluminum spacers are available in different specifications and in sizes of 5.5-26.5mm

5.Heavy duty connectors ,convenience and safety for installation and debugging

6.Support continuous bending , it automatically avoid spacer -connection while bending and cutting

Related product of LIJIANG GLASS

Insulating Glass warm edge spacers for insulating glass processing and professional spacer bending machine

Insulating glass warm edge with sound insulation, heat insulation, energy saving, safety, anti-fog and other functions applicable to building curtain wall, windows and doors glass, trains, ships, aircraft, refrigerators.

Colour: could choose the Gold, Silver, Black, and so on.

Use: Manufacturing building doors and windows, Train, Bus, insulating glass, insulating door, shutter, refrigeration equipment and so on.

Using method and attention: All the glass should be dry and clean. The insulating glass should be made by the following steps.

Compared to the normal spacer bar the adcantage of warm edges

------Can reduce the heat transfer coefficient of the whole window

------Improve the dew resistance of insulating glass

------effectively reduce the possibility of glass self- explosion crack

Declare:

1.Thickness is customized according to requirements

2.The packing quantity of each carton is decided by model, thickness and length

.Rustless, corrosion, high brightness.

.Surface evenly, straightness, and no deformation and dimensional stability.

.Connected by only one straighter, good sealing with long lifetime.

limit deviation of peripheral wall thickness is ±0.025mm.

High strength, toughness, and with continuous bend to any angle of ending equipment aluminum frame.

Well arranged vents.

To ensure that activities of molecular sieve, guarantees and various types of adhesive with excellent adhesion.

Energy saving and environmental protection, low heat transfer coefficient

Three Kinds : All stainless , Stainless+glassfiber , All glassfiber

The color and thickness is varities and it can be customized .

Model	Thickness(mm)	Length(m)	AmountPer box(m)	Package dimensions(m)
9A	0.2-0.35	5M	1100	5×0.16×0.11
12A	0.2-0.35	5M	880	5×0.16×0.11
14A	0.2-0.35	5M	770	5×0.16×0.11
15A	0.2-0.35	5M	660	5×0.16×0.11
19A	0.2-0.35	5M	550	5×0.16×0.11
20A	0.2-0.35	5M	490	5×0.16×0.11
22A	0.2-0.35	5M	450	5×0.16×0.11
24A	0.2-0.35	5M	400	5×0.16×0.11
27A	0.2-0.35	5M	350	5×0.16×0.11
