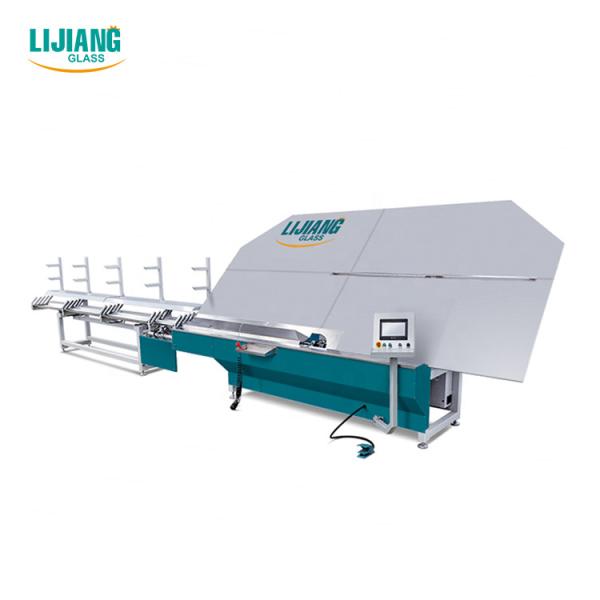

Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing
Specifications
Brand Name :
LIJIANG GLASS
Model Number :
LJZW2020A
Certification :
CE
Place of Origin :
CHINA
MOQ :
one
Price :
35,000 USD to 33,000 USD
Payment Terms :
L/C, T/T
Supply Ability :
12 units per month
Delivery Time :
15 working days
Packaging Details :
Wooden boxes and containers
Voltage :
380V 50HZ 3P
Power :
2.5KW
Dimension(L*W*H) :
10500mm*2200mm*2500mm
Weight :
1580 kg
Warranty :
1 Year
Description
Automatic aluminum bar bending machine LJZW2020A
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing
Product Description

Automatic warm edge spacer bending machine for soft spacer bars

1•Siemens PLC control system with fast working speed •4 groups of storages (2 or 12 groups of storages can be optional) •Automatically cut and feed aluminum spacers •Automatically avoid the pins while bending and cutting •Bend spacer frames continuously •Aluminum spacers are available in sizes of 6A-27A •Different bending tools for different sizes of spacers •Pause and Reset device for handling equipment failures •Bending warm spacers, aluminum spacer and stainless steel spacers are optional, it is the different bending design •Connect to ERP system (Optional) •USB input function, read the excel format file directly
New bending machine can equipped with reading code function (Optional)
Details Images

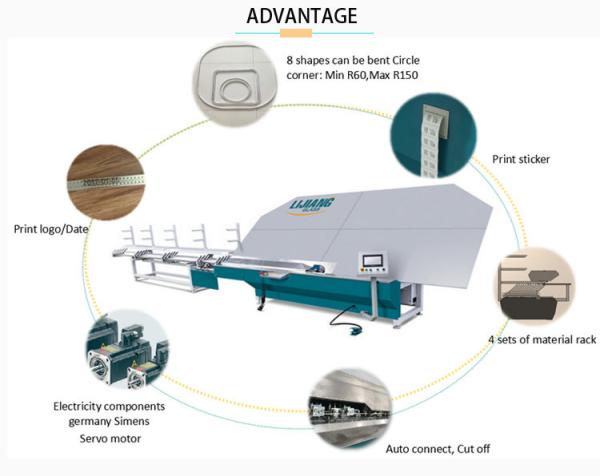

Details introduce:
•Spacer printing code function (Optional)
•2 or 12 groups of storages (Optional)
•Printing label sticker function (Optional)
•Bending stainless steel ( Optional)
•Bending aluminum spacer (Optional)
•Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A (Optional)
Customer Photos
Specification
Max. bending size
2000mm*2000mm
Min. bending size
250mm*200mm
Stainless steel spacer width
5.5-27mm
Dimensional error
±0.5mm
Angle error
±1º
Processing speed
17s
Air supply
≥0.65MPa
Total power
AC220/380V 50Hz 2.5KW
Dimension
10500mm*2200mm*2600mm

Automatic Warm Edge Spacer Bending Machine For Insulating Glass ProcessingAutomatic Warm Edge Spacer Bending Machine For Insulating Glass ProcessingAutomatic Warm Edge Spacer Bending Machine For Insulating Glass ProcessingAutomatic Warm Edge Spacer Bending Machine For Insulating Glass Processing
