Automatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup Spacer
Automatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup Spacer
Automatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup Spacer
Automatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup Spacer
Automatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup Spacer
Automatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup Spacer
Automatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup Spacer
Automatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup Spacer
Automatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup Spacer
Automatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup Spacer
Specifications
Brand Name :
LIijiang Glass
Model Number :
LJZW 2020A
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 30000.00 - 35000.00
Payment Terms :
L/C, T/T
Supply Ability :
50sets/month
Delivery Time :
45 days
Packaging Details :
Container/wooden box
After-sales service provided :
Provide
Condition :
New
Weight :
2600KGS
Dimension(l*w*h) :
10500H*2200W*2600H mm
Description

Automatic Warm Spacer Bending Machine , can fold aluminum strip.Tylenol, Arup spacer, stainless steel (optional), etcAutomatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup Spacer

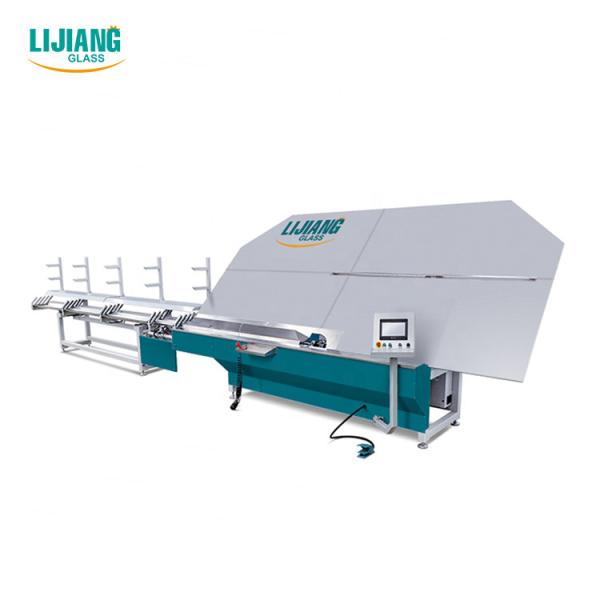

Automatic Warm Spacer Bending Machine LJZW 2020A

• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures
• Can bend aluminum spacer, Technoform, Alupro, Thermix, warm spacer (Swisspacer)

Automatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup SpacerAutomatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup SpacerAutomatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup Spacer

Specification

Max. bending size 2000mm*2000mm (2500mm*2500mm)
Min. bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm

Automatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup SpacerAutomatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup SpacerAutomatic Warm Spacer Bending Machine Fold Aluminum Strip , Tylenol , Arup Spacer

* Germany Siemens PLC control system,touch screen interface
* Japan FUJI CNC servo control system
* Four spacer size storage units
* Using servo system to control feeding mechanism

* USB input function, read the excel format file directly etc (Optional)
* Stainless steel (Optional)
* Automatic drill gas filling hole (Optional)
* Connect to ERP system (Optional)
* Spacer printing code function (Optional)
* Printing label sticker function (Optional)
