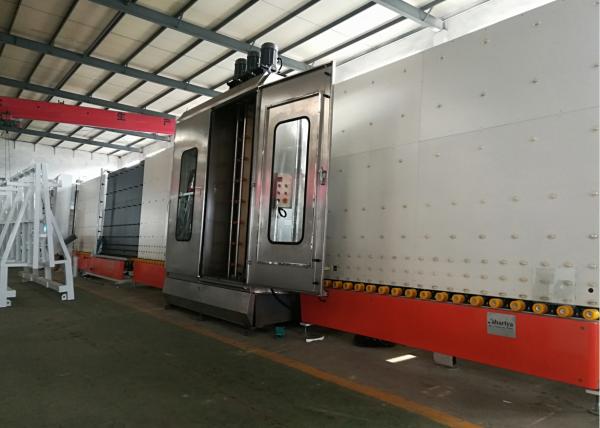

High quality and good price Automatic double glazing production line filled with argon gas

Introduction of vertical insulating air-floating glass processing line with gas filling

It uses air floating technology to transfer the glass, preventing it from being contaminated by the wheels and leaving a trace to improve the high quality of IG production. This line has seven sections.

01 Transfer section;

02 Washing machine;

03 Discharge section;

04 Inspection and installation section.

05 Transfer section;

06 Press and filling section;

07 Discharge section.

Main feature:

• Ultra-long (2500mm * 3500mm) insulating glass can be compressed twice

• Adopt a conveyor belt for glass transfer and press the glass using a servo motor

• The press plate can be opened for easy maintenance

• Adjustable press board to guarantee long-lasting service life

• Automatically fills with argon gas for significant sealing effect and high argon content

• Setting the zone to fill different sizes of glass with the follow-up sealing method reduces the loss of argon.

• You can set the gas value and view the process of filling the touch screen with gas

• Fast reaction sensor for permanent control of gas filling process

• Gas concentration can reach 90% or higher

• No need to drill holes in the spacer frame

• Standard gas is argon gas

07 discharge section

• Storage glass

• Can be connected to sealing machine

Technical data

Other sizes of the vertical insulating air-floating glass processing line with gas filling :

Optional functions of vertical insulating air-floating glass processing line with gas filling :

• Step glass with optional edges (L:100mm W:50mm)

• Shaped glass

• Pre washing machine

Details of Automatic vertical insulating air-floating glass processing line

01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

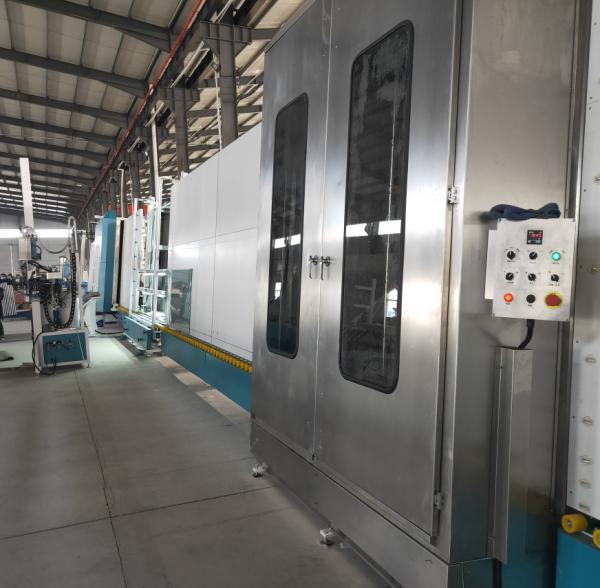

02 washing machine

• You can wash low-e glass with 6 soft brushes of 0.1mm soft hair

• The new air knife uses an aluminum profile (Duckville Air Knife) and the size of the air outlet is adjusted by the aluminum profile duck beak. This reduces the number of adjusting screws, prevents each screw from loosening, and avoids air knife resonance.

• The air knife can automatically adjust the width of the air knife according to the thickness.

• The operation box with the cleaning speed display can accurately display the cleaning speed (8-10m).

• Water tank automatic temperature control, water supply system

• European silencer system

• Stainless steel material

03 discharge section

• Storage glass

04 inspection and installation section

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass

05 transfer section

• Automatic measurement of glass thickness. It can be used according to actual needs when working.

06 pressing and filling section

Other product of LIJIANG GLASS

Vertical edge deleting machine Glass Edge Grinding Machine with servo motor

LJDM2545 Smart Vertical Edge Remover is used to remove low-e glass edge film. The glass edge remover adopts the imported servo control method and performs accurate positioning with smooth operation. High quality whetstones are durable and can produce clean and beautiful whetstones. The distance can be electrically set in the range of 10 to 150 mm.

Low-E glass, also known as low emissivity glass, is a type of film product in which the surface of the glass is composed of a multilayer metal or other compound. Compared to common glass and traditional ceramic coated glass, the coating has excellent insulation and light transmission.

Low-e glass types:

Single silver Low-E glass

A single silver Low-E coated glass usually contains only one functional layer (silver layer). In addition to other metal and compound layers, the total number of coating layers reaches 5.

Double glazing Low-E glass

Double silver Low-E coated glass has two functional layers (silver layer), as well as other metal layers and compound layers, and the total number of coating layers reaches nine. However, the technical process control of double glazing Low-E glass is much more difficult. Than single silver.

Main feature of Low-E film deleting machine:

Vertical Low-E glass edge deletion machine contains 3 sections: glass loading section, deleting section and glass unloading section. Low-E film deletion machine has 4 kinds of different directions. Online low-e and outline low-e glass.

The vertical low-e film edge deletion machine can delete the double or triple low-e film.

• 6 sets of servo motors, British TRIO system
• Two-way and four-way inlet outlets are available
• Automatically measure glass size
• Removed double and triple silver low-e glass
• Automatically measure glass size
• Automatically distinguishes low-e surfaces
• PLC control system, touch screen interface
• 6 servo control systems
• Intelligent control system, can recognize batch processing
• Adjustable edge removal
• The head can rotate 360 °
• Safe and fully automatic device​

Technical parameter:

Electrical parameters
