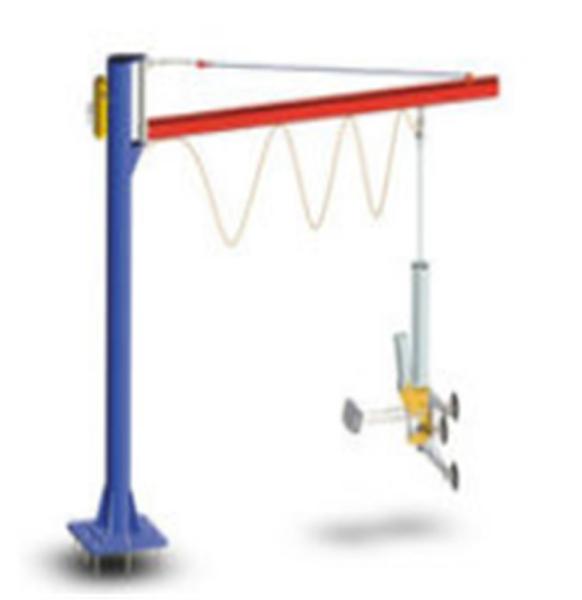

Pneumatic Vacuum Glass Lifter Machine With Four Meters Arm And Four Meters Length
Pneumatic Vacuum Glass Lifter Machine With Four Meters Arm And Four Meters Length
Pneumatic Vacuum Glass Lifter Machine With Four Meters Arm And Four Meters Length
Pneumatic Vacuum Glass Lifter Machine With Four Meters Arm And Four Meters Length
Pneumatic Vacuum Glass Lifter Machine With Four Meters Arm And Four Meters Length
Pneumatic Vacuum Glass Lifter Machine With Four Meters Arm And Four Meters Length
Specifications
Brand Name :
LIJIANG GLASS
Model Number :
LJXJ400KG
Certification :
CE
Place of Origin :
JINAN CHINA
MOQ :
1 set
Price :
USD 1800 - 3500 per set
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
15 days
Packaging Details :
Wooden box
Production name :
Glass lifting machine
Glass weight :
400 kg / 600 kg / 800 kg
Glass suckers :
4 / 6 / 8 or more
Brand :
LIJIANG GLASS
Warranty :
1 year
Voltage :
220 V
Description

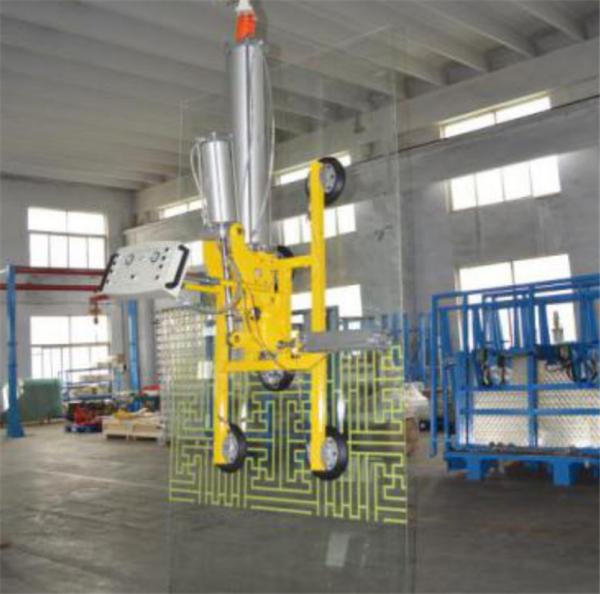

Pneumatic Vacuum Glass Lifter Machine With Four Meters Arm And Four Meters Length

1. Function description of glass lifting devices

  • Intelligent control system, super sound light alarm device.
  • Without any cable, it is driven by two extra large batteries, with real-time power display.
  • Power saving, single battery can be used for 3-5 days, charging voltage is 220V.
  • Thomas direct current oil-free vacuum pump imported from the United States has super suction, safety and reliability.
  • It can realize 0-90 ° turning and handling (special labor-saving device, easy to operate).
  • It can realize 0-360 degree rotary handling (special labor-saving device, easy to operate).
  • When the vacuum pressure is insufficient, it will give an audible and visual alarm, and automatically replenish air efficiently (only 1.5 seconds).
  • The frame adopts combined design, the position of suction cup can be adjusted, and it can be closed manually.
  • The suction cup adjustment does not need any tools and hands to change the rack style.
  • High precision pressure detection and high sealing vacuum gas storage barrel ensure safety
  • and reliability.
  • The special power-off protection system can keep the pressure for more than 20 minutes after power-off.The precision of vacuum pressure digital display is more than 50% higher than that of traditional pointer pressure gauge.

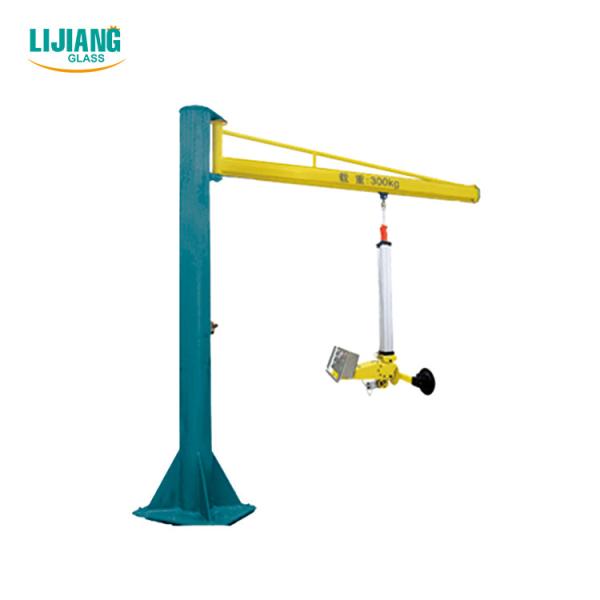

Pneumatic Vacuum Glass Lifter Machine With Four Meters Arm And Four Meters Length

Parameters of glass lifter machine :

Parameter configuration

 ​Parameter configuration ​Parameter configuration ​Parameter configuration
load KG 400KG 600KG 800KG
Model DP-X4P DP-X6P DP-X8P
Dead weight KG 70KG 90KG 100KG

Minimum dimension

 0.85×0.75×0.3M 1.5×1.15×03M 1.5×1.15×0.3M

Maximum dimension

 1.2×0.9×0.3M 1.8×1.0×0.3M 2.5×1.0×0.3M
Suction cup size mm (unified standard suction cup size, each equipment can be used generally)
Single suction cup bearing KG

100kg (the actual test load can reach more than 180kg)
Rotation function 360 ° manual rotation (special labor-saving device, safe and reliable, easy to operate)
reverse scan 90 ° manual turning (humanized design, automatic balance, fast and labor-saving)
Voltage DC DC12V(built in 2 extra long battery life)
Endurance It can be used for 3-5 days for one charge, and two batteries can be used alternately
Extension bar MM 500mm (single side length, special glass specification can be customized)
Control system Wired remote control suction and discharge
Customizable Note: it can be customized according to your specific process requirements, workpiece size and weight.
Weight standard

Conventional glass weight = length × width × thickness × glass density 2.5 ÷ 1000 000 = glass weight

3660×2440×19×2.5÷1000 000=424KG

safety factor

 According to the European CE safety regulations on lifting equipment and the German accident prevention regulations uvv 18 and VBG 9a, the best safety factor of the vacuum sling is 2.0, for example, the single suction of fsrl280 suction cup is 3139n, divided by the safety factor of 2.0, the load is 1570n
