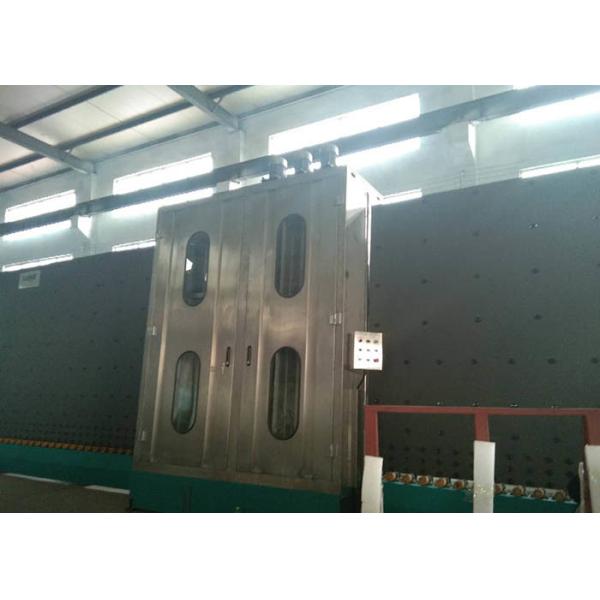

Vertical Insulating Glass Washing And Drying Machine With Combining Table Fragments
Vertical Insulating Glass Washing And Drying Machine With Combining Table Fragments
Specifications
Brand Name :
Jinan LIJIANG Glass
Certification :
CE & ISO9000
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
Negotiable Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 sets per month
Delivery Time :
15 Working Days
Packaging Details :
Wooden Cases Package and Container Transfer
Keywords :
Vertical glass washing machine
Max glass size :
2000mm*2500mm
Min glass size :
400mm*280mm
Glass thickness :
3-15mm
Pre-washing machine :
Optional
Brushes wire :
0.1mm
Brushes motor :
3 motors
Air knife :
Adjustable
Description
Auto Vertical Insulating Glass Washing and Drying Machine with Combining Table Fragments Function
Products Description
Jinan LIJIANG LJBQX2535 Insulating Glass Washing Machine
LJBQX2535 insulating glass washing computer can wash max glass of 2500mm*3500mm, extra massive dimension and much less measurement can be optional.
- Self-Diagnosis gadget with contact display on computer.
- Stainless metal washer with eight ( 6 ) brushes, tender brushes from MONFORTS of Germany, difficult brushes robotically open when Low-E glass input.
- Rotate pace of brush frequency control. (optional)
- Stainless metal air knife is routinely adjustable in accordance to glass thickness, Max thickness to 19mm
- High pace cleansing ( max 14m/min), Low noise ( max 70dB), excessive availability working. ( 25 2nd /unit)
- Automatic detection of Low-E glass and alarm for coating in reverse. (optional)
- Structure stepped and three-layer I.G. unit available. (optional)
- Precision of plate press: ±0.3mm
Advantages & Features

Benefits & Advantages
* In the washing desktop ,there three pairs smooth brushes all can wash low-e glass, 4 pairs of water spray.
* The cloth in the washing and drying area all made by means of stainless steel.
* The most important electricity consumption is often show up in the washing and drying part of the IG line.
* The air knife is flow format , it usually maintain the proper and appropriate distance between the glass and air knife in the press and layout area
* The switch wheel in the washing and drying part : The the front and returned switch wheel are all moved, all actively transferred. No mater the glass measurement is large or small , it all warranty the glass pass by thru smoothly.
* The axle and bearing of brushes are stainless metal , that all hold the laptop can washing nicely and stay for a lengthy time.
* The who drying computing device use the sound insulation design. can decrease the noise.

3 pairs of 0.1mm soft brushes
It has 3 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for Low-E glass.

New design of air knife
The whole washing machine uses a new design of air knife to washing and drying glass, which make the distance between the glass and the air knife in a stable value, to keep the best drying effect.

The water heating system
As different countries have different water quality, in order to ensure that the glass is washes clearly enough,adoptingair heating system, to use soft water to wash glass. What’s more, using water filter system to make water recycling, save water and keep the water clear.

The anti-noise system
Using Europe's advanced anti-noise system to create a good working environment for employees. The noise can be controlled below 90 decibels by using nylon gear and sponges.
Main Technical Parameter
Item.
Spec.
Max washing size
2000mm*2500mm
Min washing size
450mm*300mm
Glass washing speed
2-10m/min
Glass conveyor speed
45m/min
Washing brushes
3 pairs of soft brushes with 0.1mm hair
Water supply
Water consumption:0.5t/h conductivity:40μs/cm
Air supply
Flow: 0.8m/min
Air pressure
≥0.8MPa
Total power
18kw
Height
3100mm
